Rear Closure Center Applique Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

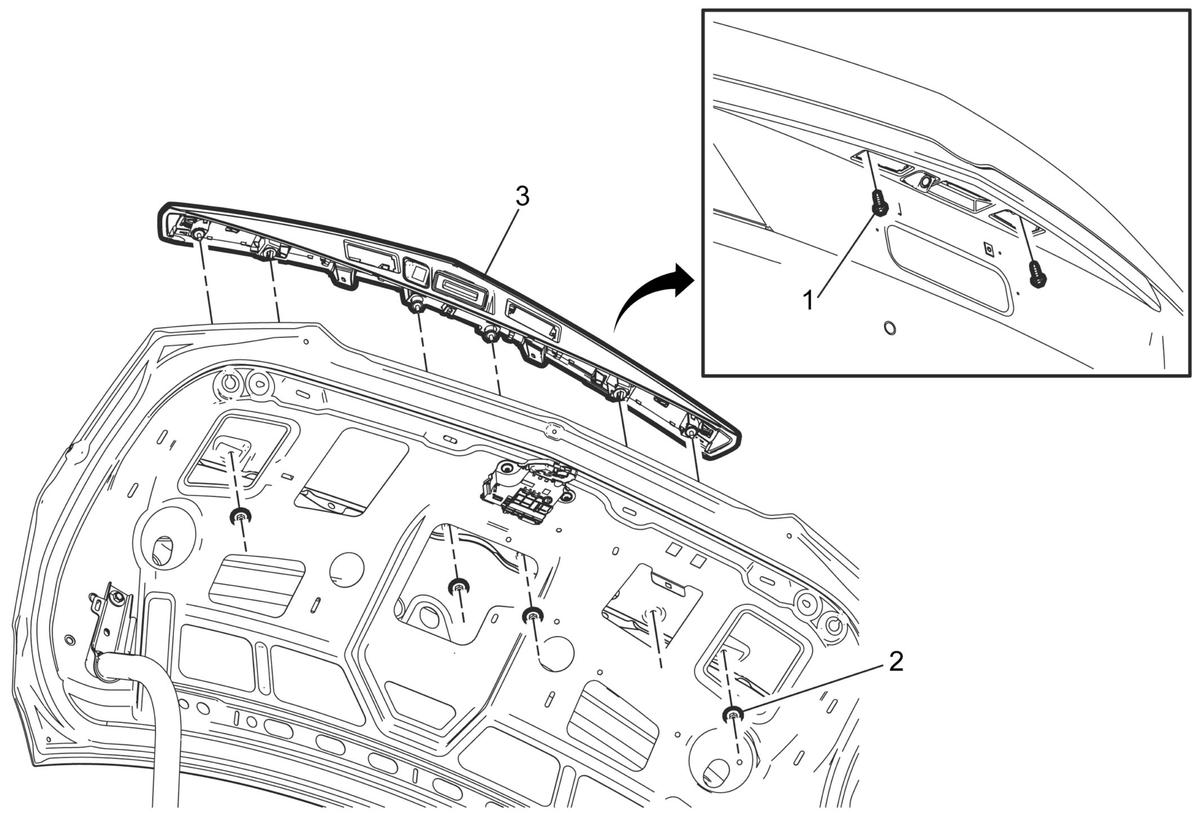

Fig 1: Rear Closure Center Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear license plate lamp. Refer to Rear License Plate Lamp Replacement Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement
1	Rear Closure Center Applique Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Rear Closure Center Applique Nut (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 4 N.m (35 lb in)
3	Rear Closure Center Applique Procedure Disconnect the electrical connector Release the two locating retainers attaching the applique to the compartment lid. Disengage the electrical harness grommet and pull the rear closure center applique from the rear compartment lid. Transfer parts as needed.
