Roof Console Replacement
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

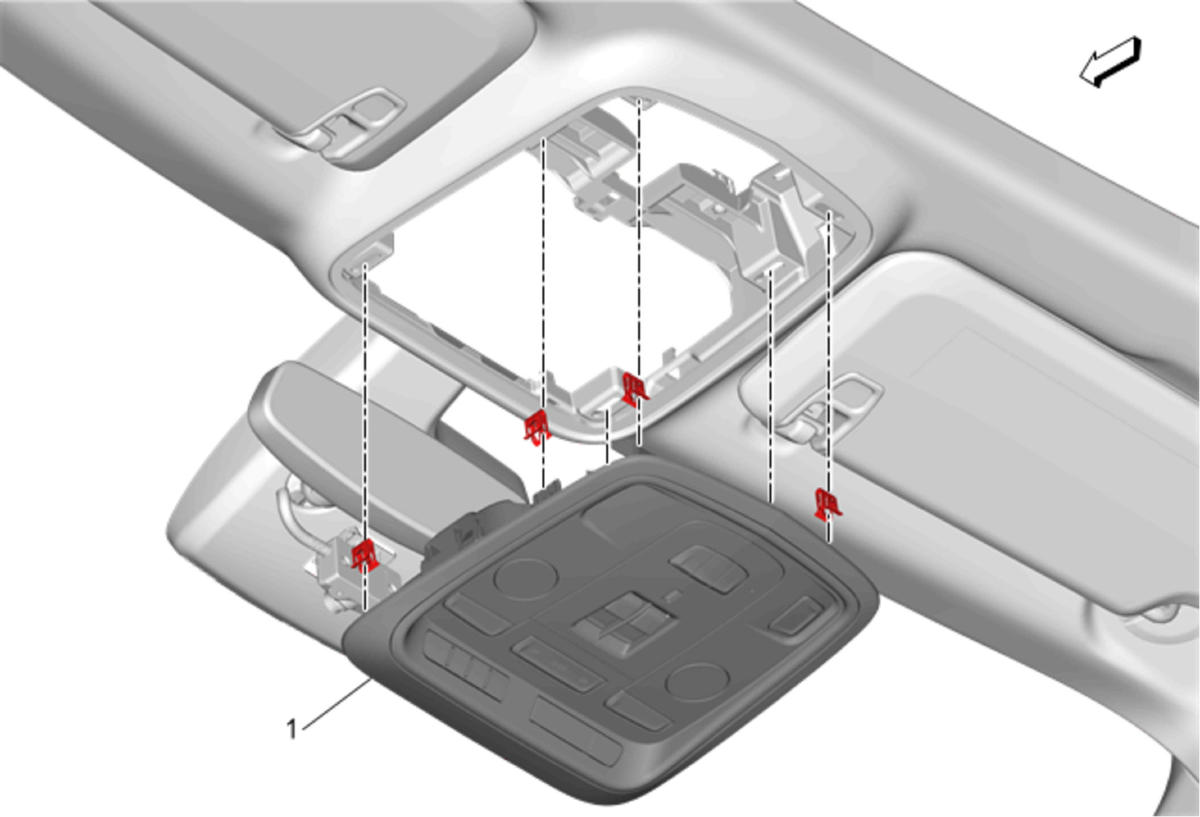

| Callout |
Component Name |
| 1 |
Roof Console Assembly Procedure
- Use a flat-bladed plastic trim tool to release the 6 retainers securing the roof console to the headliner.
- Disconnect electrical connections, if applicable.
- Transfer components as necessary.
|
