Rear Bumper Fascia Replacement (CTS)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

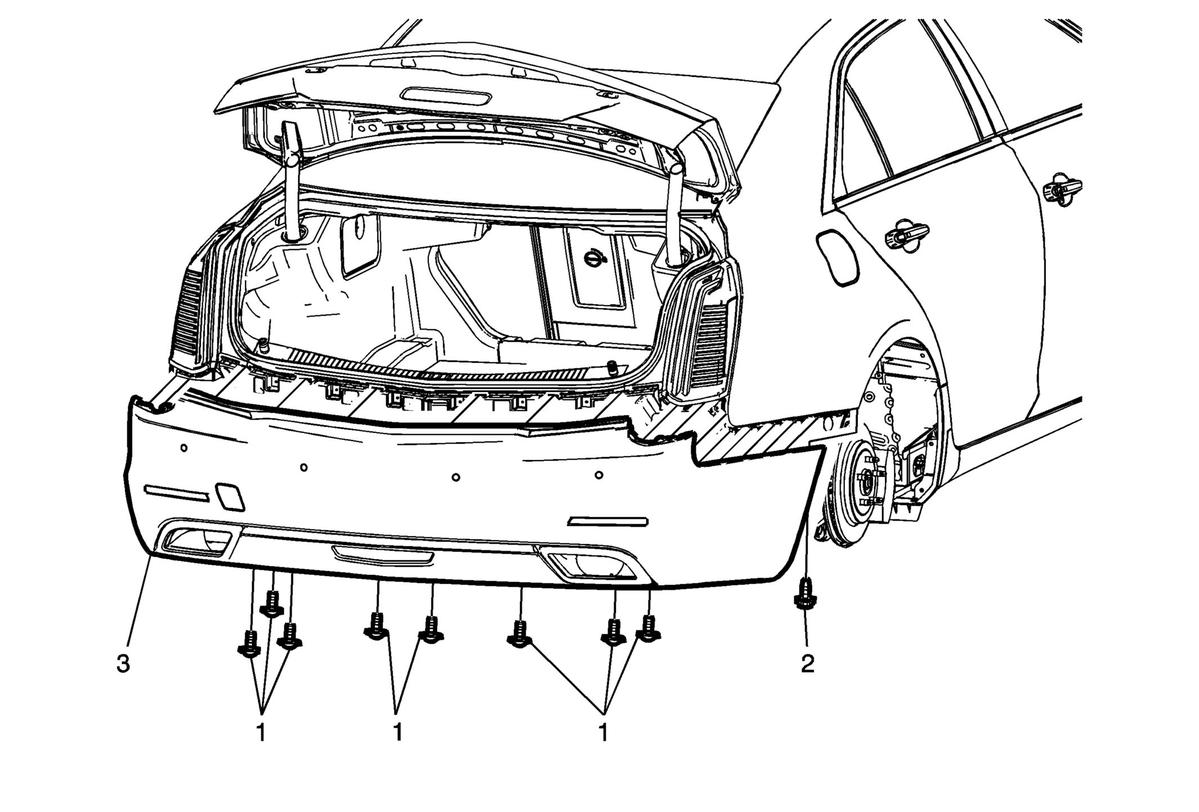

Fig 1: Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the left and right rear wheelhouse liner to gain access to the rear fascia outer bolts. Refer to Rear Wheelhouse Liner Replacement (Non V-Series) .
1	Rear Bumper Fascia Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Fascia Outer Bolt (Qty: 2) Tighten 2.5 N.m (22 lb in)
3	Rear Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the rear fascia brackets. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia brackets. Disconnect the electrical connector. Transfer parts as needed.
