Front Side Door Armrest Cover Trim Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

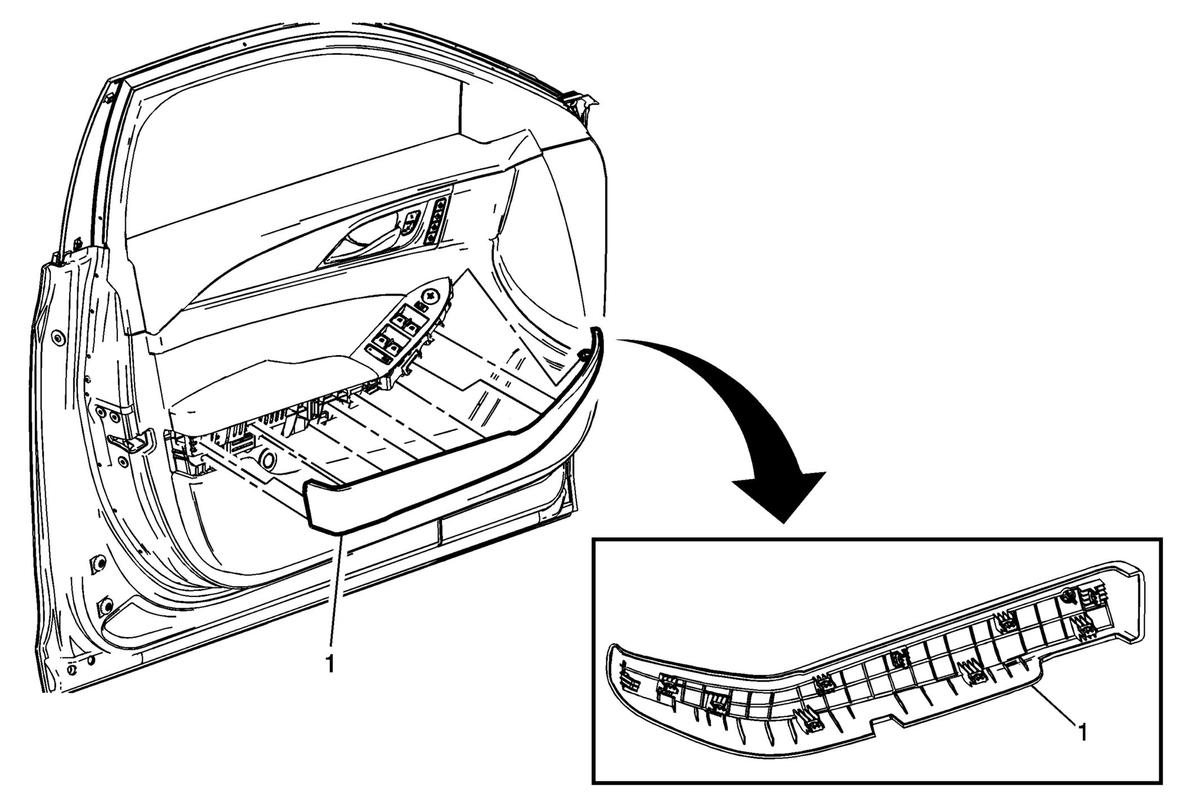

Fig 1: Front Side Door Armrest Cover Trim

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Armrest Cover Trim Assembly Procedure Use a plastic flat-bladed tool to disengage the front side door armrest cover trim from the front side door trim. Starting at the rear edge of the door armrest cover trim, pull the rear portion of the front side door armrest cover trim away from the door. Release the hook retaining feature of the front side door armrest cover trim from the door trim panel.

Callout

Component Name

Front Side Door Armrest Cover Trim Assembly

Procedure

Use a plastic flat-bladed tool to disengage the front side door armrest cover trim from the front side door trim.
Starting at the rear edge of the door armrest cover trim, pull the rear portion of the front side door armrest cover trim away from the door. Release the hook retaining feature of the front side door armrest cover trim from the door trim panel.
