Vehicle Certification, Tire Placard, Anti-Theft and Service Parts ID Label

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

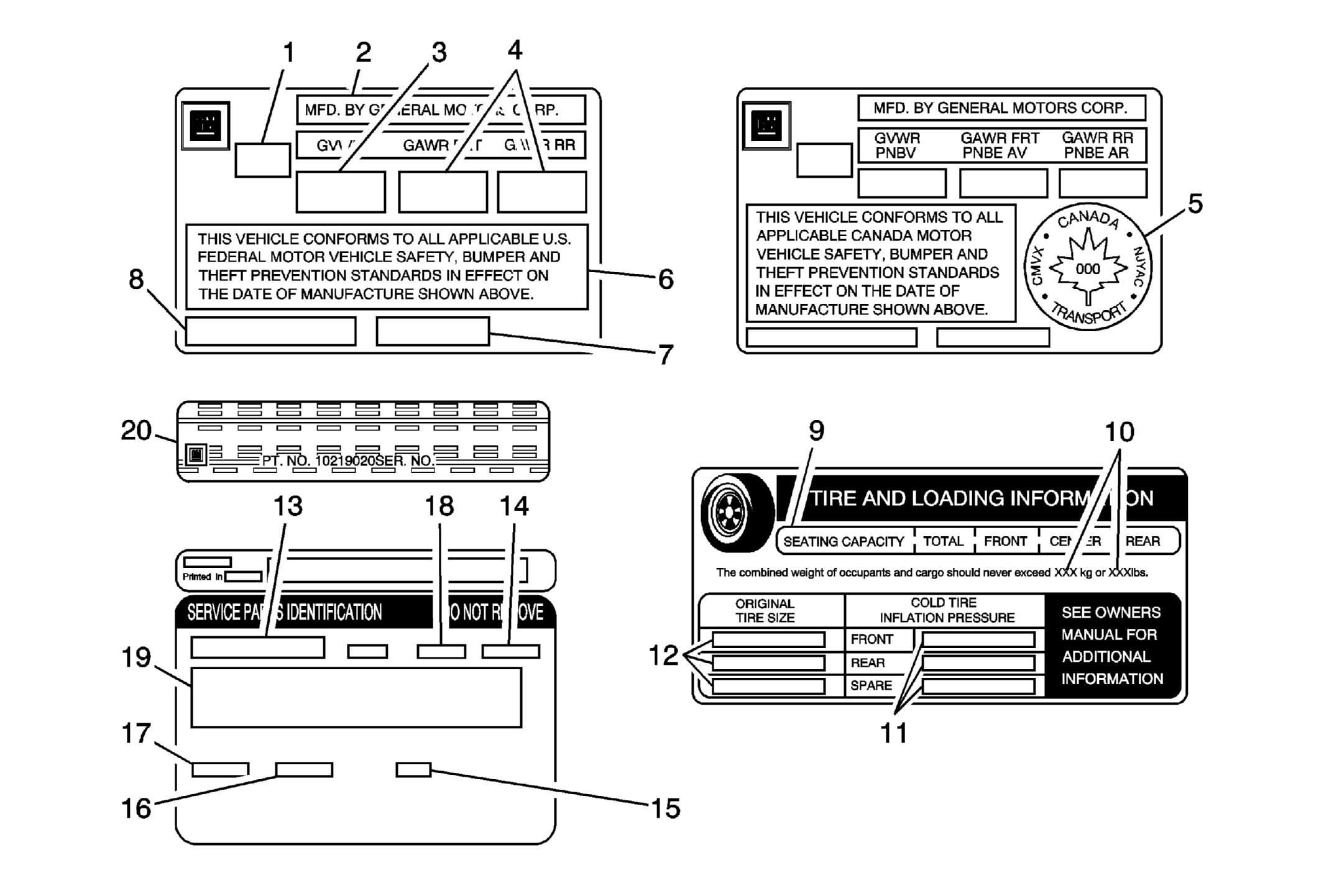

Fig 1: Vehicle Certification, Tire Placard, Anti-Theft and Service Parts ID Label

Courtesy of GENERAL MOTORS COMPANY

Callout	Description
Vehicle Certification Label The vehicle certification label is located on the left hand side of the B pillar and displays the following assessments: Gross Vehicle Weight Rating (GVWR) Gross Axle Weight Rating (GAWR), front and rear The gross vehicle weight (GVW) is the weight of the vehicle and everything it carries. The gross vehicle weight must not exceed the Gross Vehicle Weight Rating. Include the following items when figuring the GVW: The base vehicle weight (factory weight) The weight of all vehicles accessories The weight of the driver and the passengers The weight of the cargo
1	Name of Manufacturer
2	Gross Vehicle Weight Rating
3	Gross Axle Weight Rating (Front, Rear)
4	Canadian Safety Mark (w/RPO Z49)
5	Certification Statement
6	Vehicle Class Type (Pass Car, etc.)
7	Vehicle Identification Number
8	Date of Manufacture (Mo/Yr)
Tire Placard The tire placard label is located on the forward portion of the B pillar and displays the following assessments:
9	Specified Occupant Seating Positions
10	Maximum Vehicle Capacity Weight
11	Tire Pressure, Front, Rear and Spare (Cold)
12	Original Equipment Tire Size
Service Parts ID Label The vehicle service parts identification label is located on the rear compartment floor panel. The rear compartment floor panel carpet must be removed to see the label. The label is used to help identify the vehicle original parts and options.
13	Vehicle Identification Number
14	Engineering Model Number (Vehicle Division, Line and Body Style)
15	Interior Trim Level and Decor
16	Exterior (Paint Color) WA Number
17	Paint Technology
18	Special Order Paint Colors and Numbers
19	Vehicle Option Content
Anti-Theft Label
20	The Federal law requires that General Motors label certain body parts on this vehicle with the VIN. The purpose of the law is to reduce the number of motor vehicle thefts by helping in the tracing and recovery of parts from stolen vehicles. Labels are permanently affixed to an interior surface of the part. The label on the replacement part contains the letter R, the manufacturer's logo and the DOT symbol. The anti-theft label must be covered before any painting, rustproofing procedures and uncovered after the procedures. Failure to follow the precautionary steps may result in liability for violation of the Federal Vehicle Theft Prevention Standard and possible suspicion to the owner that the part was stolen.
