Radiator Surge Tank Replacement (LTG)

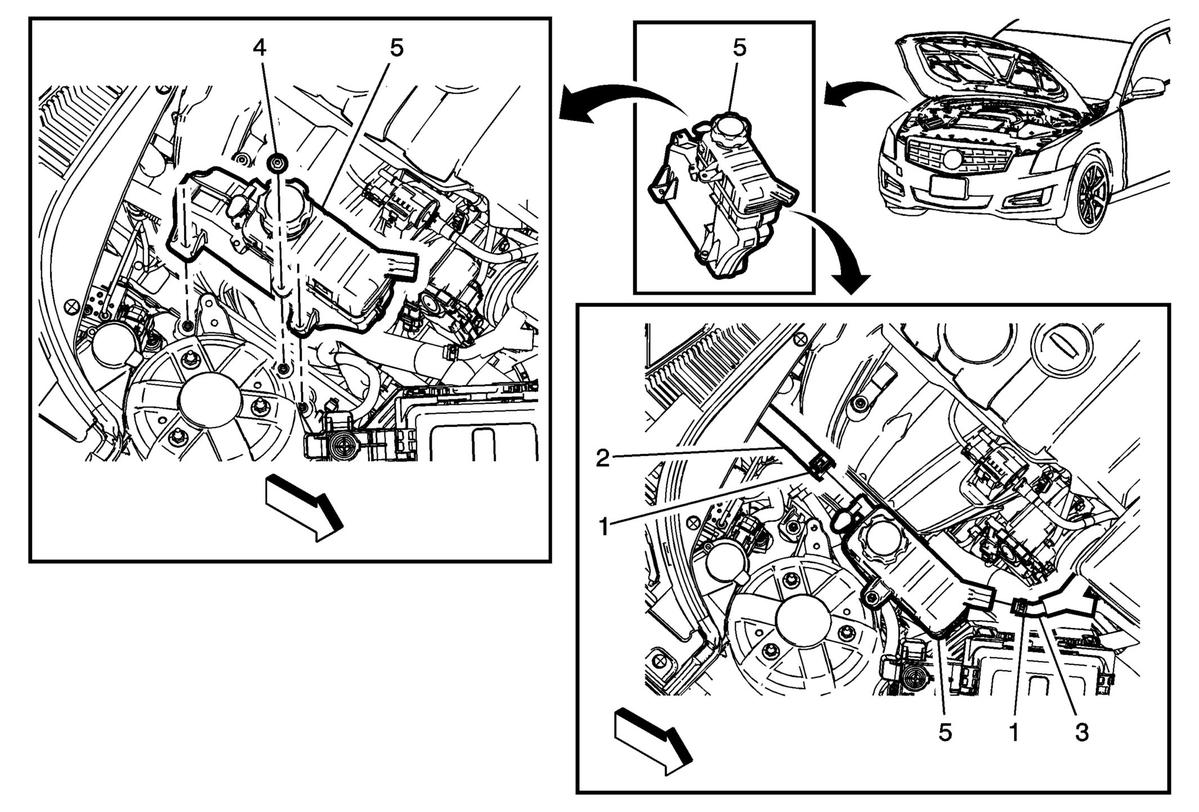

Fig 1: Radiator Surge Tank (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) .
1	Radiator Surge Tank Hose Clamp (Qty: 2) Procedure Reposition the radiator surge tank hose clamps using BO-38185 Hose Clamp Pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Heater Outlet Hose
3	Radiator Surge Tank Inlet Hose
4	Radiator Surge Tank Nut CAUTION: Refer to Fastener Caution .
5	Radiator Surge Tank Procedure Fill the coolant to the proper level. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) . Inspect cooling system for leaks. Refer to Cooling System Leak Testing .
