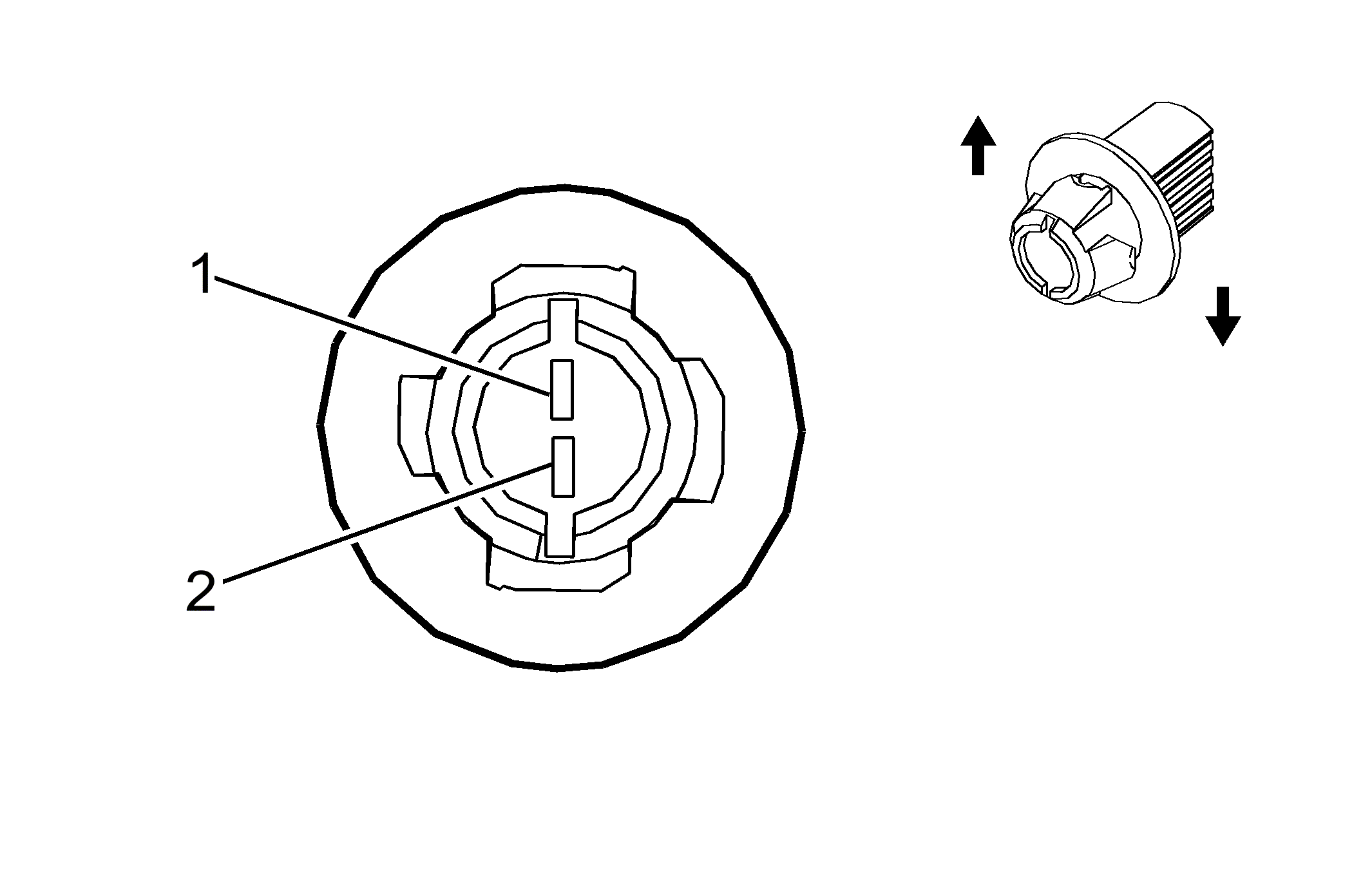

E5A Backup Lamp - Left
|
|
Connector Part Information
- Harness Type: Backup Lamp
- OEM Connector: Not Available
- Service Connector: Service by Component - See Part Catalog
- Description: 2-Way F Lampsocket, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.82 |
GN |
24 |
Backup Lamp Supply Voltage |
I |
- |
| 2 |
0.82 |
BK |
2550 |
Ground |
I |
- |
