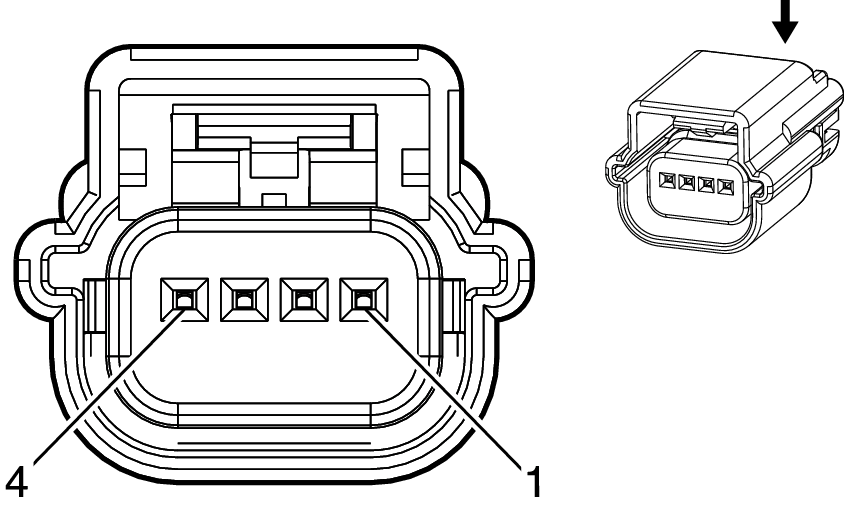

E29R Fog Lamp - Rear (T79)
|
|
Connector Part Information
- Harness Type: Backup Lamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.82 |
YE |
122 |
Rear Fog Lamp Control |
I |
- |
| 2 |
0.82 |
BK |
2550 |
Ground |
I |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
