Power, Ground, Serial Data and Driver Information
Power, Ground, Serial Data and Driver Information

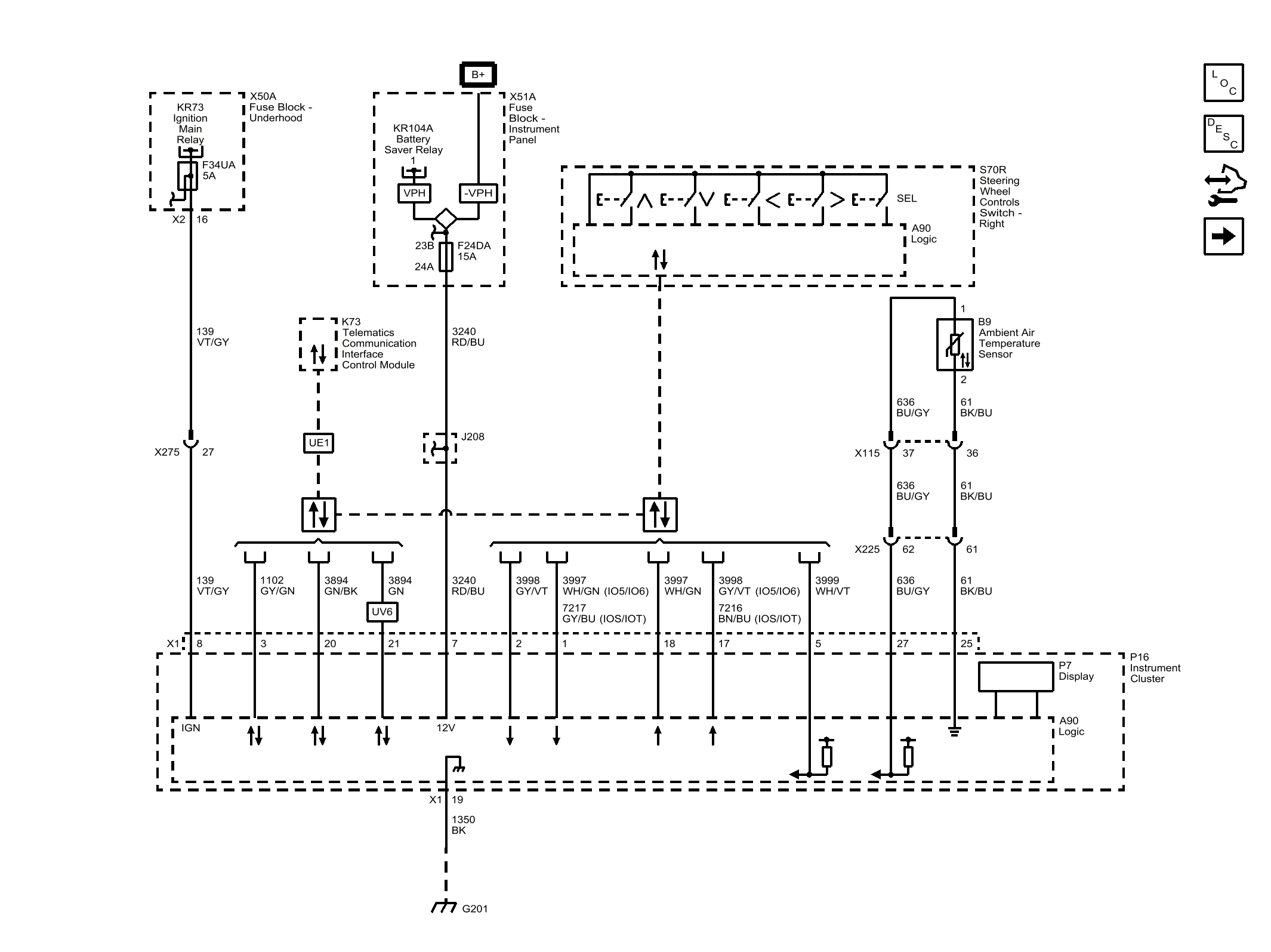

Fig 1: Power, Ground, Serial Data and Driver Information
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
