Speed Sensors and Internal Mode Switch

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

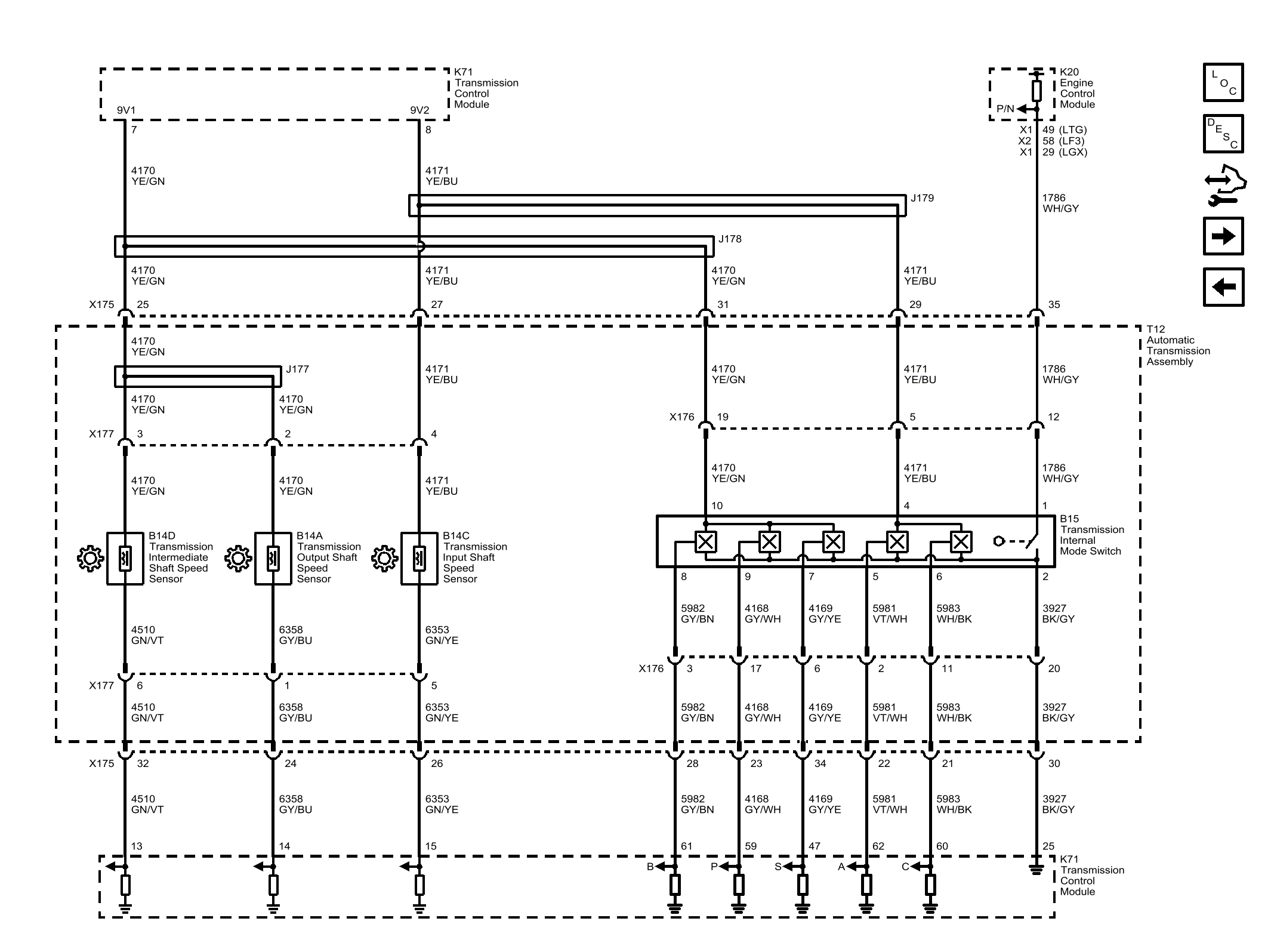

Fig 1: Speed Sensors and Internal Mode Switch
GM4078938Courtesy of GENERAL MOTORS COMPANY
