Instrument Panel Lower Airbag Replacement - Passenger Side

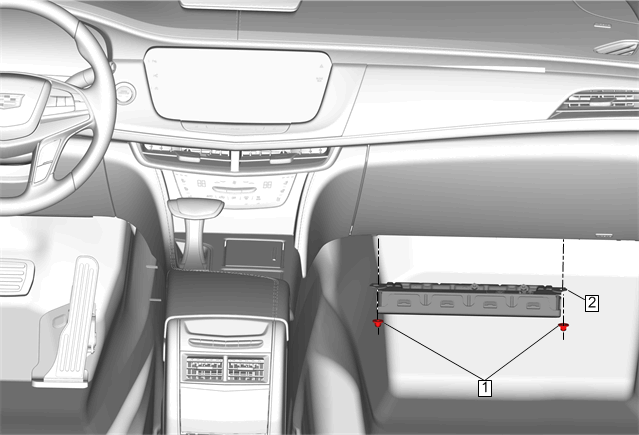

Fig 1: Instrument Panel Lower Airbag - Passenger Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1	Instrument Panel Lower Airbag Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Instrument Panel Lower Airbag - Passenger Side Procedure Disconnect the electrical connector. Inflatable Restraint Module Handling and Scrapping Enable the SIR System. Refer to SIR Disabling and Enabling

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Instrument Panel Lower Airbag Nut [2x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Instrument Panel Lower Airbag - Passenger Side

Procedure
