N162016079 - Park/Position Lamp Intensity (N162016079-01)
Reference number: N162016079-01
Supersedes refnos: N162016079
N162016079 - PARK/POSITION LAMP INTENSITY
SERVICE CAMPAIGN BULLETIN
| Affected Model(s): | 2016 - 2017 Cadillac CT6 |
SERVICE INFORMATION
| Release Date: October 2021 | Revision: 01 |
| Revision Description: | This bulletin has been revised to add a copy of the customer letter. Please discard all copies of bulletin N162016079. |
| Attention: | It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by this notification under a sale or lease until the defect or noncompliance is remedied. All involved vehicles that are in dealer inventory must be held and not delivered to customers, dealer traded, or used for demonstration purposes until the repair contained in this bulletin has been performed on the vehicle. |
| Make | Model | Model Year | RPO | Description | |
| From | To | ||||
| Cadillac | CT6 | 2016 | 2017 | ||
Involved vehicles are marked "open" on the Investigate Vehicle History screen in GM Global Warranty Management system. This site should always be checked to confirm vehicle involvement prior to beginning any required inspections and/or repairs.
| Condition | General Motors has decided that certain 2016-2017 Cadillac CT6 vehicles fail to conform to Federal Motor Vehicle Safety Standard (FMVSS) 108 "Lamp, Reflective Devices and Associated Equipment." The light output of the forward Park/Position lamps may exceed the maximum values permitted by the standard. Lamps that are brighter than compliant lamps may be distracting to other drivers, increasing the risk of a crash. |
| Correction | Dealers will install right and left side in-line headlamp jumper harnesses that correct the condition. |
PARTS INFORMATION
SERVICE INFORMATION
| Quantity | Part Name | Part No. |
|---|---|---|
| 2 | Harness - Headlamp Jumper | 84240083 |
There are only 6 vehicles involved in this recall. Please do not order parts for shelf stock.
Reminder: Parts may be removed from Retail Inventory Management (RIM). Dealers should review the affected parts to confirm RIM managed status.
WARRANTY INFORMATION
SERVICE INFORMATION
| Labor Operation | Description | Labor Time | Trans. Type | Net Item |
| 9105970 | Install Left and Right Headlamp Jumper Harness | 0.4 | ZFAT | N/A |
| 9105971 | Customer Reimbursement Approved - For USA and Canada dealers only |
N/A |
ZFAT | * |
| 9105972 | Customer Reimbursement Denied - For USA dealers only | N/A | ZFAT | ** |
Note: To avoid having to "H" route the customer reimbursement transaction for approval, it must be submitted prior to the repair transaction.
* For USA and Canada: Submit the dollar amount reimbursed to the customer in Net/Reimbursement. Submit $20.00 administrative allowance in Net/Admin Allowance.
** Submit $10.00 administrative allowance in Net/Admin Allowance.
SERVICE PROCEDURE
- Turn the front wheels to the full right position.

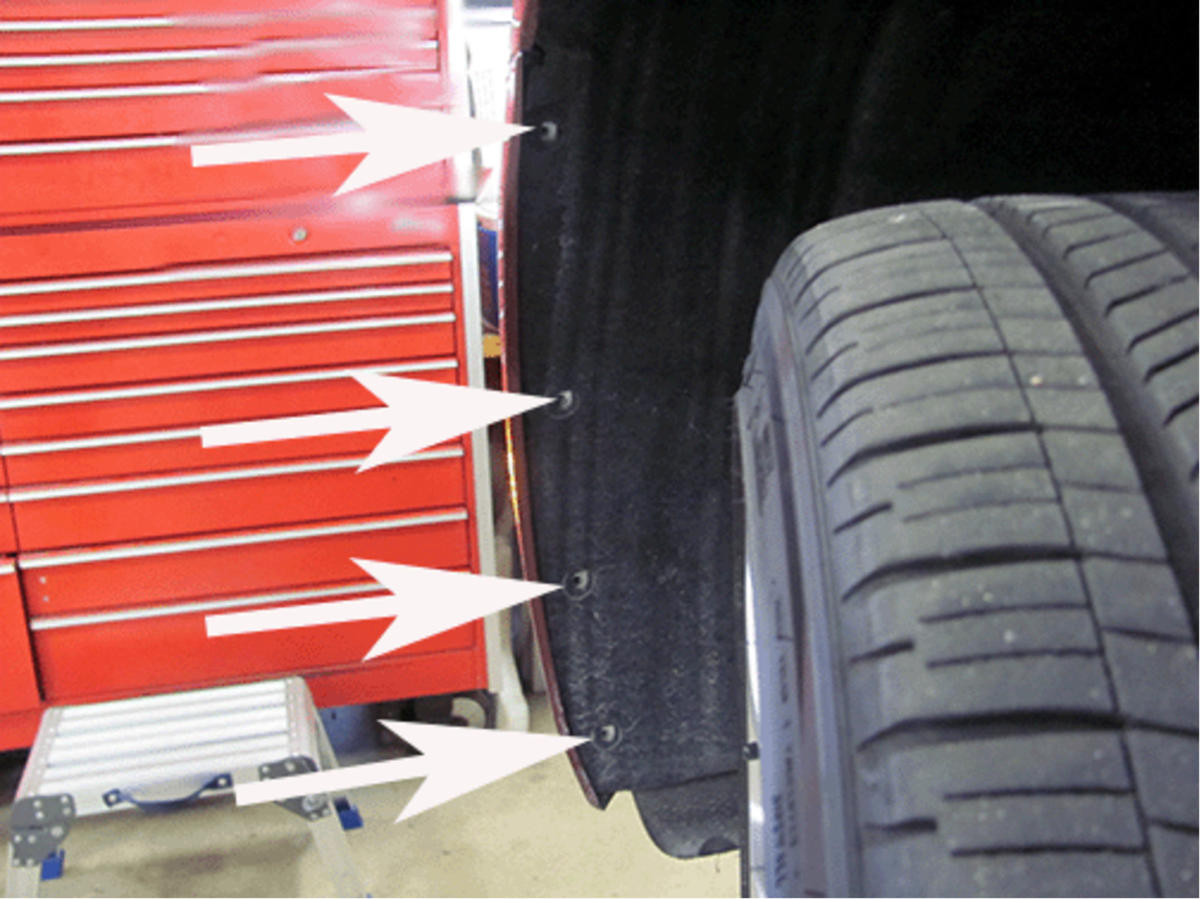

- Remove the four left wheelhouse liner fasteners as shown.

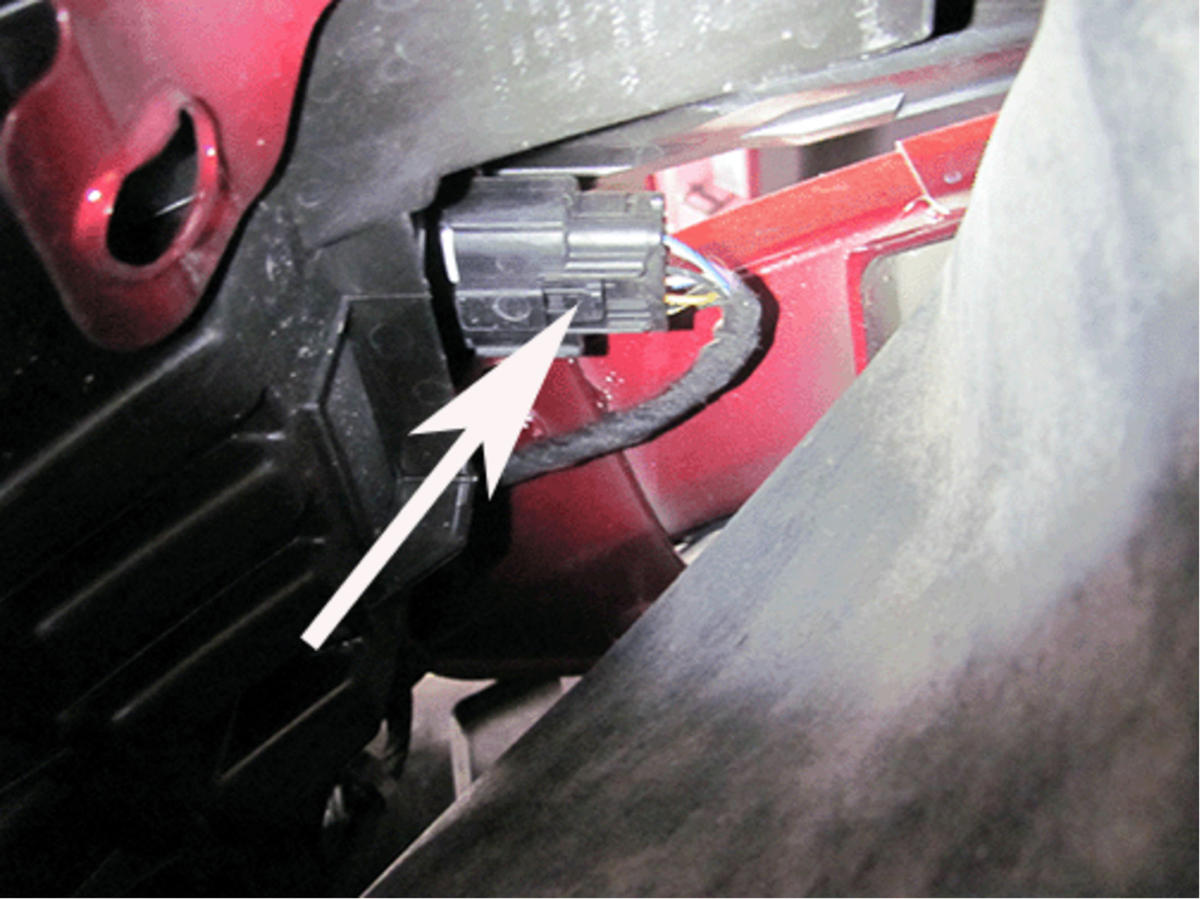

- Unplug the left headlamp wiring harness from the lamp.

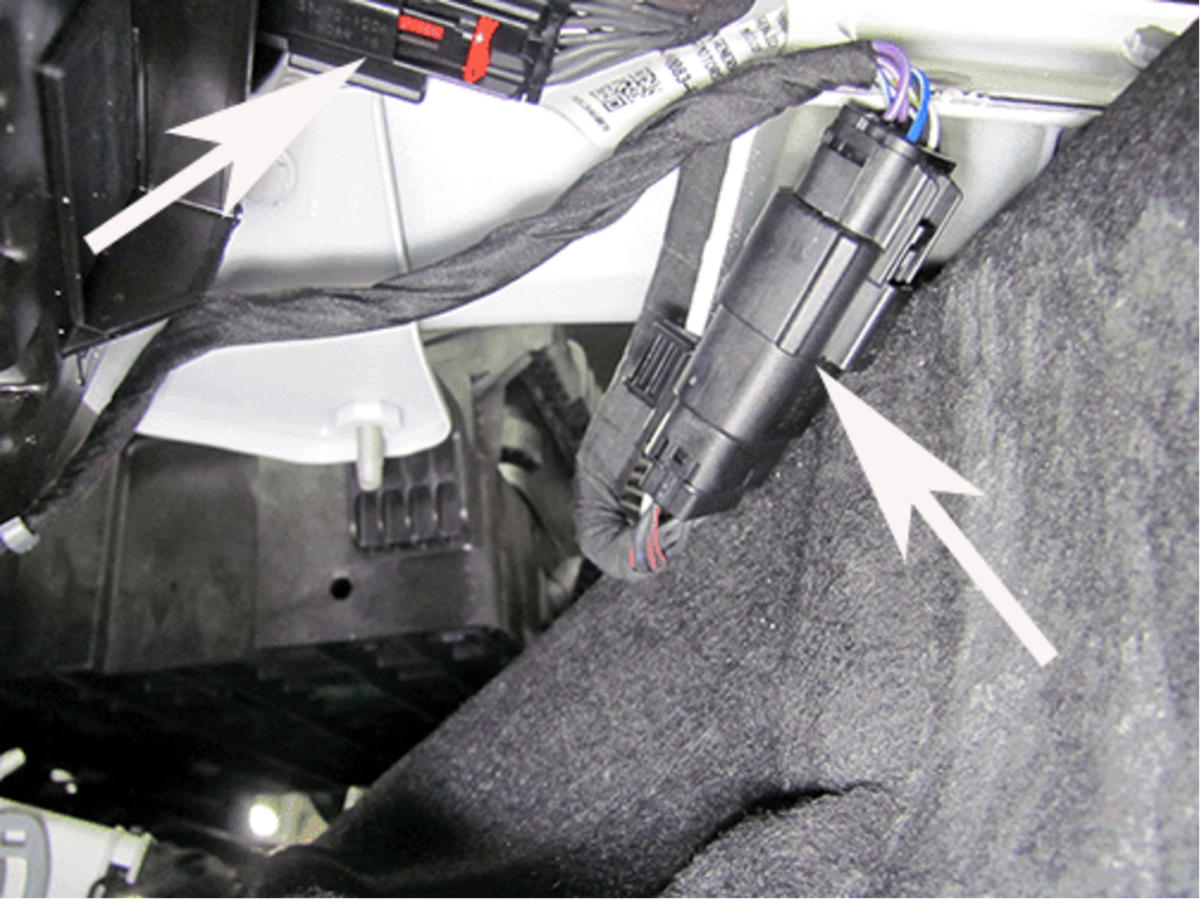

- Install the jumper harness to the lamp harness and plug the jumper into the left headlamp.

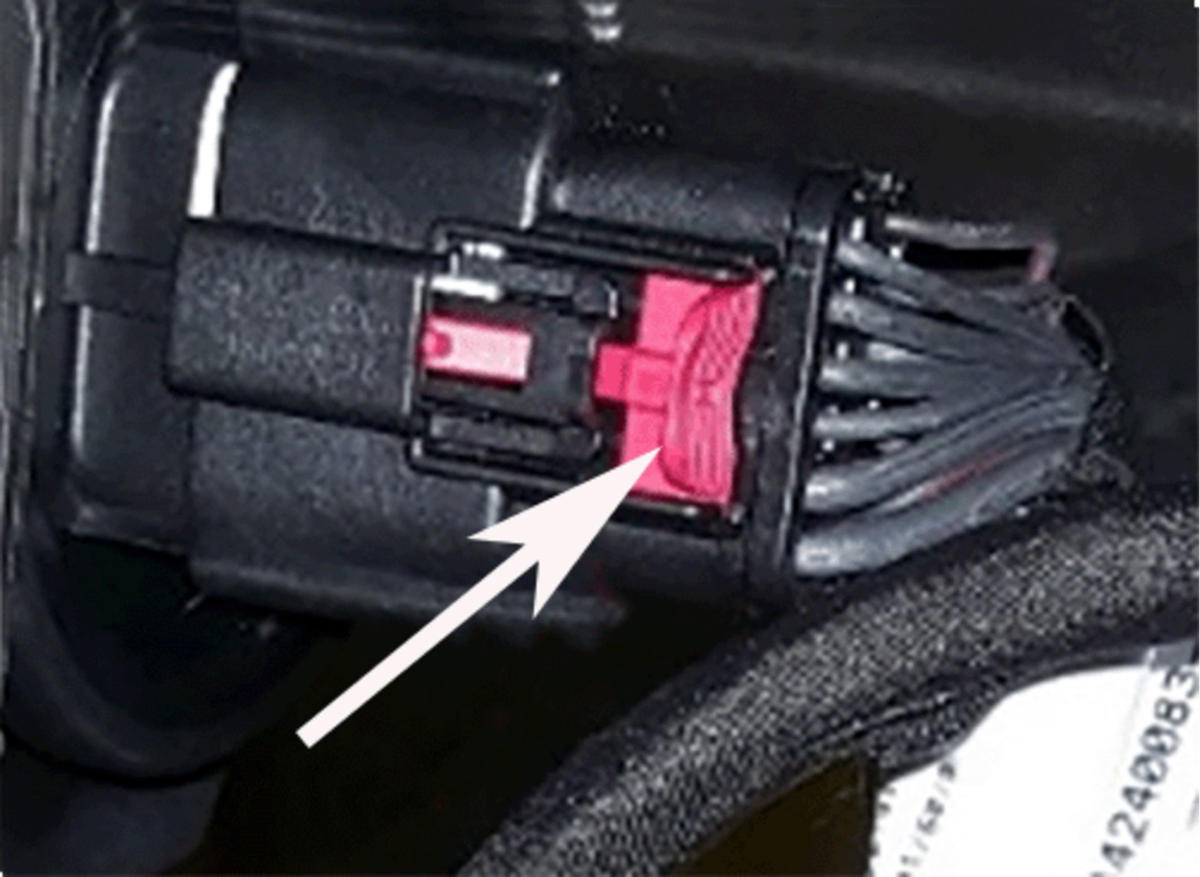

- After the jumper harness is installed, engage the CPA clip (the red locking tab on the connector).

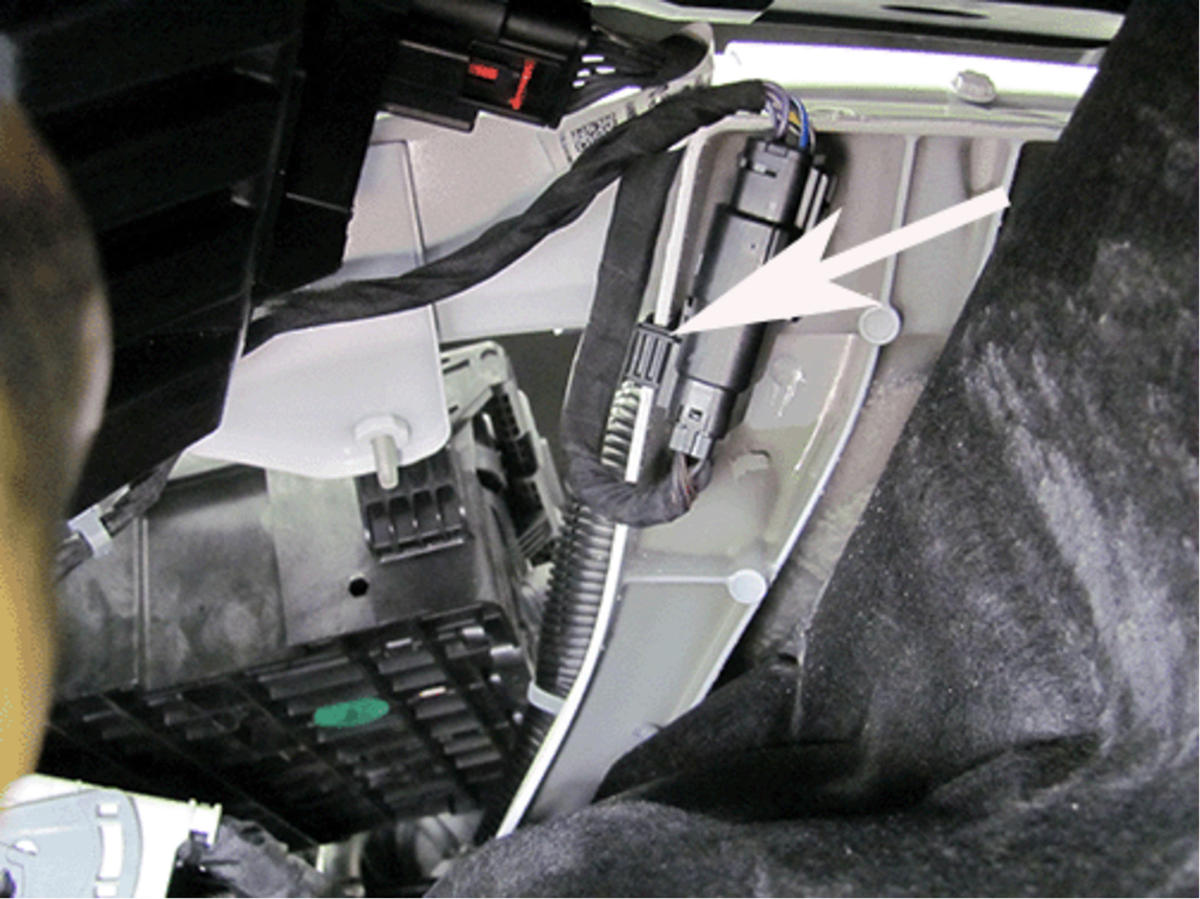

- Twist the harness connector 180 Deg. and clip the retainer to the cast aluminum wheelhouse.
- Reinstall the four left wheelhouse liner fasteners. Tighten 2.5 N.m (22 lb in).
- Turn the front wheels to the full left position.
- Remove the four right wheelhouse liner fasteners.
- Unplug the right headlamp wiring harness from the lamp.
- Install the jumper harness to the lamp harness and plug the jumper into the right headlamp.
- After the jumper harness is installed, engage the CPA clip (the red locking tab on the connector.

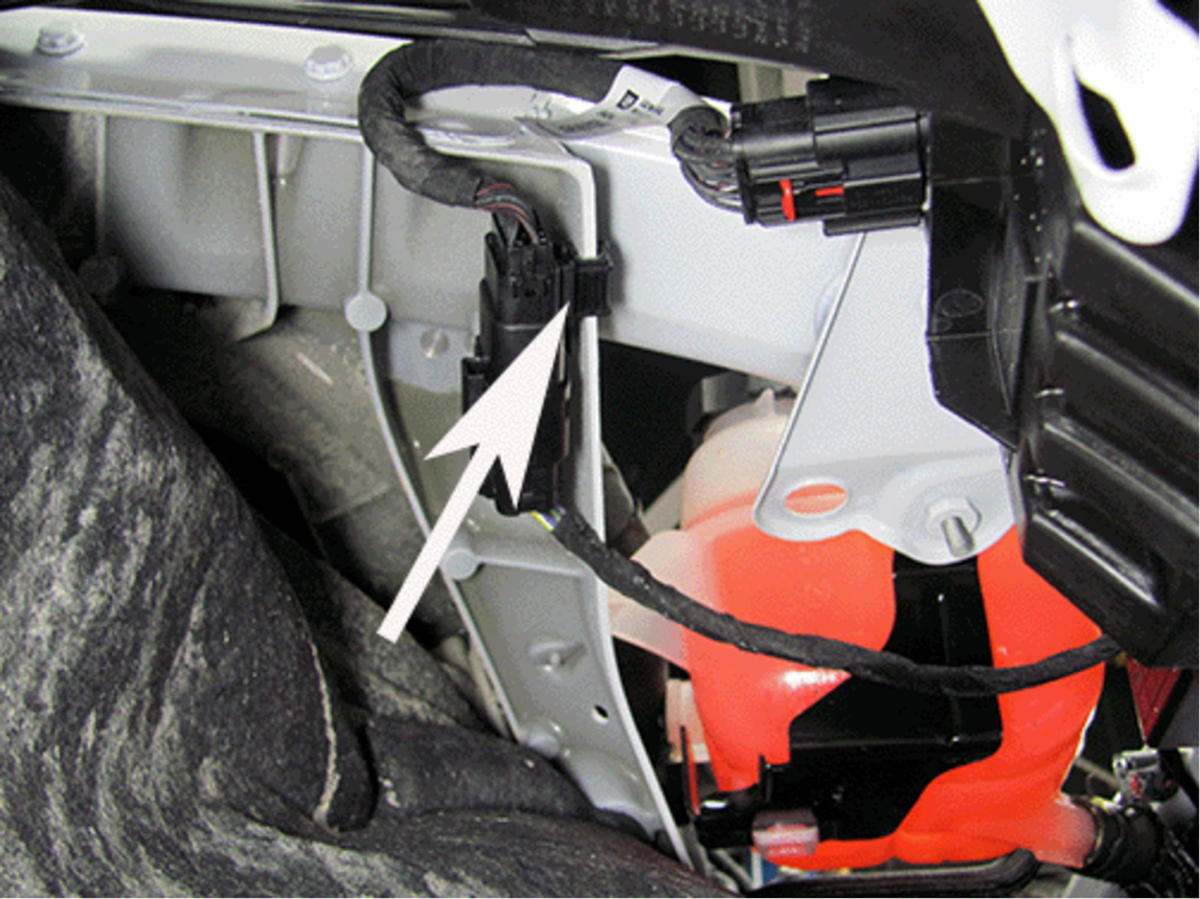

- Clip the retainer to the cast aluminum wheelhouse.
- Reinstall the four right wheelhouse liner fasteners. Tighten 2.5 N.m (22 lb in).
- Perform a final function test to ensure the front lamps turn on.
- CALIFORNIA VEHICLES ONLY: Complete a "Proof of Correction" certificate and provide to the vehicle owner upon recall completion.
DEALER RESPONSIBILITY - FOR US AND EXPORT (US STATES, TERRITORIES, AND POSSESSIONS)
It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by this notification under a sale or lease until the defect or noncompliance is remedied.
The US National Traffic and Motor Vehicle Safety Act provides that each vehicle that is subject to a recall of this type must be adequately repaired within a reasonable time after the customer has tendered it for repair. A failure to repair within sixty days after tender of a vehicle is prima facie evidence of failure to repair within a reasonable time. If the condition is not adequately repaired within a reasonable time, the customer may be entitled to an identical or reasonably equivalent vehicle at no charge or to a refund of the purchase price less a reasonable allowance for depreciation. To avoid having to provide these burdensome remedies, every effort must be made to promptly schedule an appointment with each customer and to repair their vehicle as soon as possible. In the recall notification letters, customers are told how to contact the US National Highway Traffic Safety Administration if the recall is not completed within a reasonable time.
DEALER RESPONSIBILITY - ALL
All new, used, GM Certified Used, courtesy transportation vehicles, dealer shuttle vehicles, etc. in dealers' possession and subject to this recall must be held and inspected/repaired per the service procedure of this bulletin before customers take possession of these vehicles. Involved vehicles must be held and not delivered to customers, dealer-traded, released to auction, used for demonstration, or any other purpose.
All GM Certified Used vehicles currently in the dealers' inventory within the Certified Pre-Owned Inventory System (CPOIS) will be de-certified andmust be held and remedied per the service procedure in this bulletin. Upon submitting an accepted/paid warranty transaction in the Global Warranty Management (GWM) system, the vehicle can be re-certified for sale within the CPOIS system, or once again be used in the CTP program.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, from this time forward.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers.Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this field action enters your vehicle inventory you must take the steps necessary to ensure the program correction has been made before selling the vehicle. In addition, for vehicles entering your facility for service, you are required to ensure the customer is aware of the open field action and make every reasonable effort to implement the program correction as set forth in this bulletin prior to releasing the vehicle.
DEALER REPORTS
For dealers with involved vehicles, a listing has been prepared and will be available through GM GlobalConnect Maxis Field Action Reports or sent directly to export dealers. The Inventory tab of the dealer reports will contain VINs that apply to this recall. This information is intended to assist dealers with the PROMPT COMPLETION of these vehicles. The Customer In-Service tab will contain customer names and addresses from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this recall may be a violation of law in several states.
CUSTOMER NOTIFICATION
USA & Canada - General Motors will notify customers of this recall on their vehicle (see copy of customer letter included with this bulletin).
CUSTOMER REIMBURSEMENT
Customer requests for reimbursement of previously paid repairs to correct the condition described in the bulletin can be submitted at anytime to the dealer. See General Motors Service Policies and Procedures Manual, Product Field Action Customer Reimbursement Procedure (USA & Canada) or local Policies and Procedures, for details.
IMPORTANT SAFETY RECALL
OWNER LETTER
November 2021
This notice applies to your vehicle, VIN: _____________________________________
Dear General Motors Customer:
NO TITLE
This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.
General Motors has decided that certain 2016-2017 Cadillac CT6 vehicles fail to conform to Federal Motor Vehicle Safety Standard (FMVSS) 108 "Lamp, Reflective Devices and Associated Equipment." As a result, GM is conducting a recall. We apologize for this inconvenience. However, we are concerned about your safety and continued satisfaction with our products. about your safety and continued satisfaction with our products.
|
IMPORTANT:
|
| Why is your vehicle being recalled? | The light output of the forward Park/Position lamps may exceed the maximum values permitted by the standard. Lamps that are brighter than compliant lamps may be distracting to other drivers, increasing the risk of a crash. |
| What will we do? | Your GM dealer will install right and left side in-line headlamp jumper harnesses that correct the condition free of charge. Because of service scheduling requirements, it is likely that your dealer will need your vehicle longer than the actual service correction time of approximately 30 minutes. |
| What should you do? | You should contact your GM dealer to arrange a service appointment as soon as possible. |
| Did you already pay for this repair? | Even though you may have previously had repairs for this condition, you will still need to take your vehicle to your dealer for additional repairs. If you have already paid for repairs for the condition described in this letter, please complete the enclosed reimbursement form and present it to your dealer with all required documents. Working with your dealer will expedite your request, however, if this is not convenient, you may mail the completed reimbursement form and all required documents to Reimbursement Department, PO Box 33170, Detroit, MI 48232-5170. |
| Do you have questions? | If you have questions or concerns that your dealer is unable to resolve, please contact the appropriate Customer Assistance Center at the number listed below. |
| Division | Number | Text Telephones (TTY) |
| Cadillac | 1-800-333-4223 | 1 - 800 - 833 - 2622 |
| Puerto Rico - English | 1-800-496-9992 | |
| Puerto Rico - Espa n ol | 1-800-496-9993 | |
| Virgin Islands | 1-800-496-9994 |
If after contacting your dealer and the Customer Assistance Center, you are still not satisfied we have done our best to remedy this condition without charge and within a reasonable time, you may wish to write the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Avenue, SE, Washington, DC 20590, or call the toll-free Vehicle Safety Hotline at 1.888.327.4236 (TTY 1.800.424.9153), or go to http://www.safercar.gov. The National Highway Traffic Safety Administration Campaign ID Number for this recall is 21V759.
Federal regulation requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within ten days.
Regina A. Carto
Vice President
Global Product Safety and Systems
Enclosure
GM Recall N162016079
