52320 - Instrument Panel Cluster Park Brake Tell Tale Lettering Height (52320-02)
Reference number: 52320-02
Supersedes refnos: 52320
52320 - INSTRUMENT PANEL CLUSTER PARK BRAKE TELL TALE LETTERING HEIGHT
SERVICE CAMPAIGN BULLETIN
| Affected Model(s): | 2016 - 2017 Cadillac CT6 2016 - 2017 Cadillac CTS 2016 - 2017 Cadillac Escalade 2016 - 2017 Cadillac Escalade ESV 2016 - 2017 Cadillac XTS |
SERVICE INFORMATION
| Reference Number: N162052320 | Release Date: February 2018 |
| Revision: 02 | |
| Revision Description: The Service Procedure and the Warranty Information sections have been revised. Effective immediately, technicians MUST record the Warranty Claim Code on the Job Card. To avoid warranty transaction rejection, this information must be entered when submitting the transaction. If the Same Calibration/Software Warning is noted on the SPS Controller screen, continue with the programming event using SPS to ensure a Warranty Claim Code is displayed on screen. Please discard all previous copies of bulletin 52320-01. | |
| Attention: | It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by this notification under a sale or lease until the defect or noncompliance is remedied. All involved vehicles that are in dealer inventory must be held and not delivered to customers, dealer traded, or used for demonstration purposes until the repair contained in this bulletin has been performed on the vehicle. |
| Make | Model | Model Year | RPO | Description | |
| From | To | ||||
| Cadillac | CT6 | 2016 | 2017 | UDV | Display Instrument-Driver Info Enhanced, Full Cluster (Multi Color Graphic) |
| Cadillac | CTS | 2016 | 2017 | UDV | Display Instrument-Driver Info Enhanced, Full Cluster (Multi Color Graphic) |
| Cadillac | Escalade | 2016 | 2017 | UDV | Display Instrument-Driver Info Enhanced, Full Cluster (Multi Color Graphic) |
| Cadillac | Escalade ESV | 2016 | 2017 | UDV | Display Instrument-Driver Info Enhanced, Full Cluster (Multi Color Graphic) |
| Cadillac | XTS | 2016 | 2017 | UDV | Display Instrument-Driver Info Enhanced, Full Cluster (Multi Color Graphic) |
Involved vehicles are marked "open" on the Investigate Vehicle History screen in GM Global Warranty Management system. This site should always be checked to confirm vehicle involvement prior to beginning any required inspections and/or repairs.
| Condition | General Motors has decided that certain 2016-2017 model year Cadillac CT6, CTS, Escalade, Escalade ESV, and XTS vehicles fail to conform to Federal Motor Vehicle Safety Standard (FMVSS) 135, "Light vehicle brake systems." The telltale light that illuminates within the cluster when the park brake is applied does not meet the lettering height requirement of S5.5.5(a) of FMVSS 135. The regulation requires such lettering to be not less than 3.2 mm in height. The park brake applied lettering on the subject vehicles is 2.436 mm. |
| Correction | Reprogram the instrument cluster. |
PARTS INFORMATION
No parts are required for this procedure.
WARRANTY INFORMATION
| Labor Operation | Description | Labor Time | Trans. Type | Net Item |
| 9102275* | Instrument Cluster Reprogramming with SPS | 0.6 | ZFAT | N/A |
* To avoid warranty transaction rejection, the Warranty Claim Code(s) must be entered when submitting this transaction.
SERVICE PROCEDURE
Carefully read and follow the instructions below.
- Ensure the programming tool is equipped with the latest software and is securely connected to the data link connector. If there is an interruption during programming, programming failure or ECU damage may occur.
- Stable battery voltage is critical during programming. Any fluctuation, spiking, over voltage or loss of voltage will interrupt programming. When required, install the EL-49642 SPS Programming Support Tool to maintain system voltage. If not available, connect a fully charged 12 V jumper or booster pack disconnected from the AC voltage supply. DO NOT connect a battery charger.
- Turn OFF or disable systems that may put a load on the vehicles battery such as; interior lights, exterior lights (including daytime running lights), HVAC, radio, etc.
- Clear DTCs after programming is complete. Clearing powertrain DTCs will set the Inspection/Maintenance (I/M) system status indicators to NO.
- To prevent programming failure due to unintended wireless drops, it is important that a wired MDI connection be used when reprogramming the Instrument Cluster.

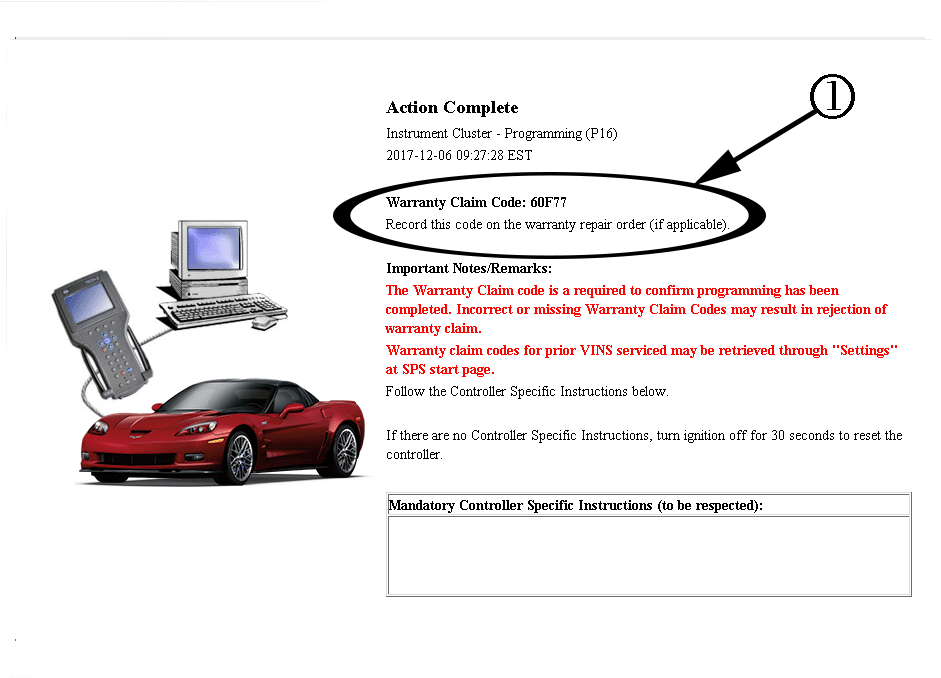

If the Same Calibration/Software Warning is noted on the SPS Controller screen, continue with the programming event using SPS to ensure a Warranty Claim Code is displayed on screen. Technicians MUST record the Warranty Claim Code (1) on the Job Card. To avoid warranty transaction rejection, this information must be entered when submitting the transaction.
- Install EL-49642 SPS programming support tool.
- Access the Service Programming System (SPS) and follow the on-screen instructions.NOTE:
A same calibrations warning may be displayed in SPS when attempting to perform Instrument Cluster - Programming. The instrument panel cluster (IPC) has the latest part number available and programming is not needed. Proceed to the next step in the service procedure.
- On the SPS Supported Controllers screen, select Instrument Cluster - Programming and follow the on-screen instructions.
- On the SPS Supported Controllers screen, select Instrument Cluster - Setup and Configuration and follow the on-screen instructions.NOTE:
This procedure requires the use of a USB memory stick. The radio must be on during this procedure. Do not use the software on the USB memory stick in multiple vehicles. The USB memory stick must be cleared after each USB programming event.
- On the SPS Supported Controllers screen, select Instrument Cluster - USB File Transfer and follow the on-screen instructions. When prompted after installing files in vehicle via USB memory stick, select UPDATE on radio display. When update is complete, select DISMISS and remove the USB memory stick.
- At the end of programming, choose the "Clear All DTCs" function on the SPS screen.
- CALIFORNIA VEHICLES ONLY: Complete a "Proof of Correction" certificate and provide to the vehicle owner upon recall completion.
DEALER RESPONSIBILITY - US STATES, TERRITORIES, AND POSSESSIONS
It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (including a tire) covered by this notification under a sale or lease until the defect or noncompliance is remedied.
DEALER RESPONSIBILITY - ALL
All new vehicles in dealers' possession and subject to this recall must be held and inspected/repaired per the service procedure of this bulletin before customers take possession of these vehicles. Involved vehicles must be held and not delivered to customers, dealer-traded, released to auction, used for demonstration, or any other purpose.
DEALER REPORTS
For dealers with involved vehicles, a listing with involved vehicles has been prepared and will be provided to U.S. and Canadian dealers through the GM GlobalConnect Recall Reports, or sent directly to export dealers.
CUSTOMER NOTIFICATION
This bulletin involves vehicles in dealer inventory only. General Motors is petitioning the National Highway Traffic Safety Administration (NHTSA) for exemption from the notification and remedy requirements of the Motor Vehicle Safety Act on the basis that this noncompliance is inconsequential to motor vehicle safety. Accordingly, GM will not be mailing letters to customers at this time.
