Windshield Outside Moisture/Ambient Light and Humidity Sensor Replacement

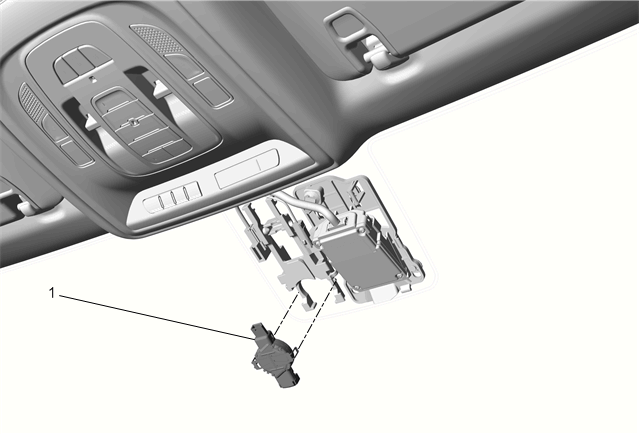

Fig 1: Windshield Outside Moisture/Ambient Light and Humidity Sensor
GM4249996Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Inside Rearview Mirror Replacement
1 Windshield Outside Moisture/Ambient Light and Humidity Sensor

Procedures

  1. Unlatch the inside windshield outside moisture and ambient light and humidity sensor, from the inside rear view mirror support bracket.
  2. Disconnect the inside windshield outside moisture and ambient light and humidity sensor connector.
