Turbocharger Air Inlet Adapter Replacement - Bank 2

WARNING: This page is about a different variant/trim than selected.

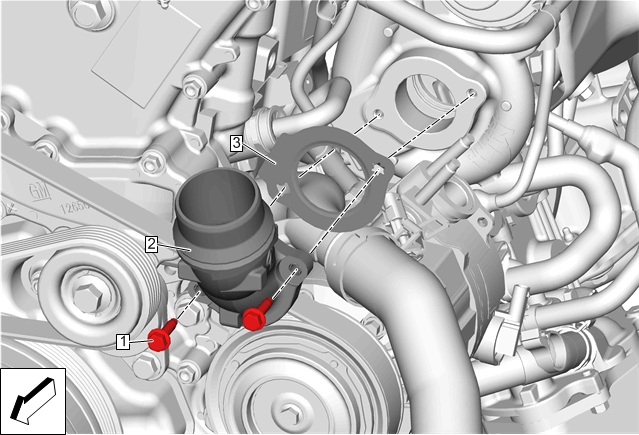

Fig 1: Turbocharger Air Inlet Adapter - Bank 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement (LGW)Intake Manifold Cover Replacement (LGX) Air Cleaner Outlet Front Duct Replacement (LGW)
1	Turbocharger Air Inlet Adapter Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Turbocharger Air Inlet Adapter
3	Turbocharger Air Inlet Adapter Seal Procedure Install a NEW seal.
