Oil Pump Suction Pipe and Screen Assembly Replacement
WARNING: This page is about a different variant/trim than selected.

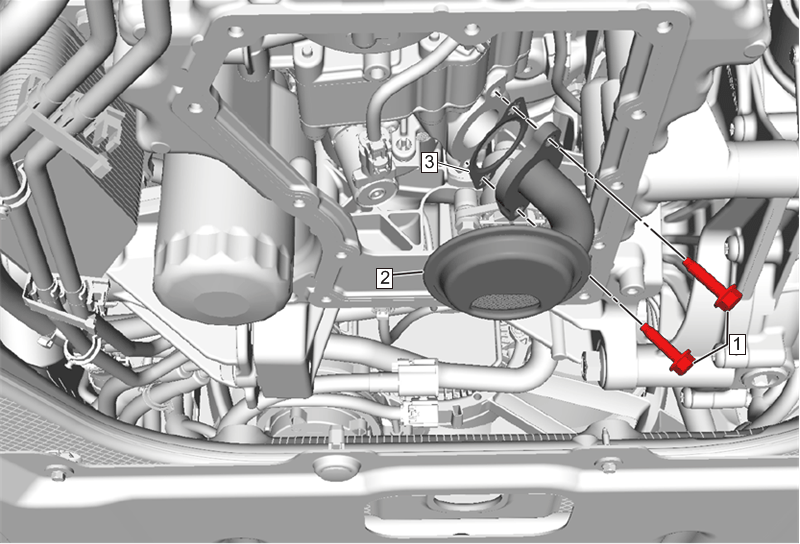

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower Oil Pan Replacement |
|
| 1 | Oil Pump Suction Pipe Bolt [2x]
CAUTION:
Refer to Fastener Caution
. Tighten 10 N.m (89 lb in) |
| 2 | Oil Pump Suction Pipe and Screen Assembly |
| 3 | Oil Pump Suction Pipe Gasket
NOTE:
Install a NEW gasket
|
