Engine Oil Pressure Sensor and/or Switch Replacement (LGX)

WARNING: This page is about a different variant/trim than selected.

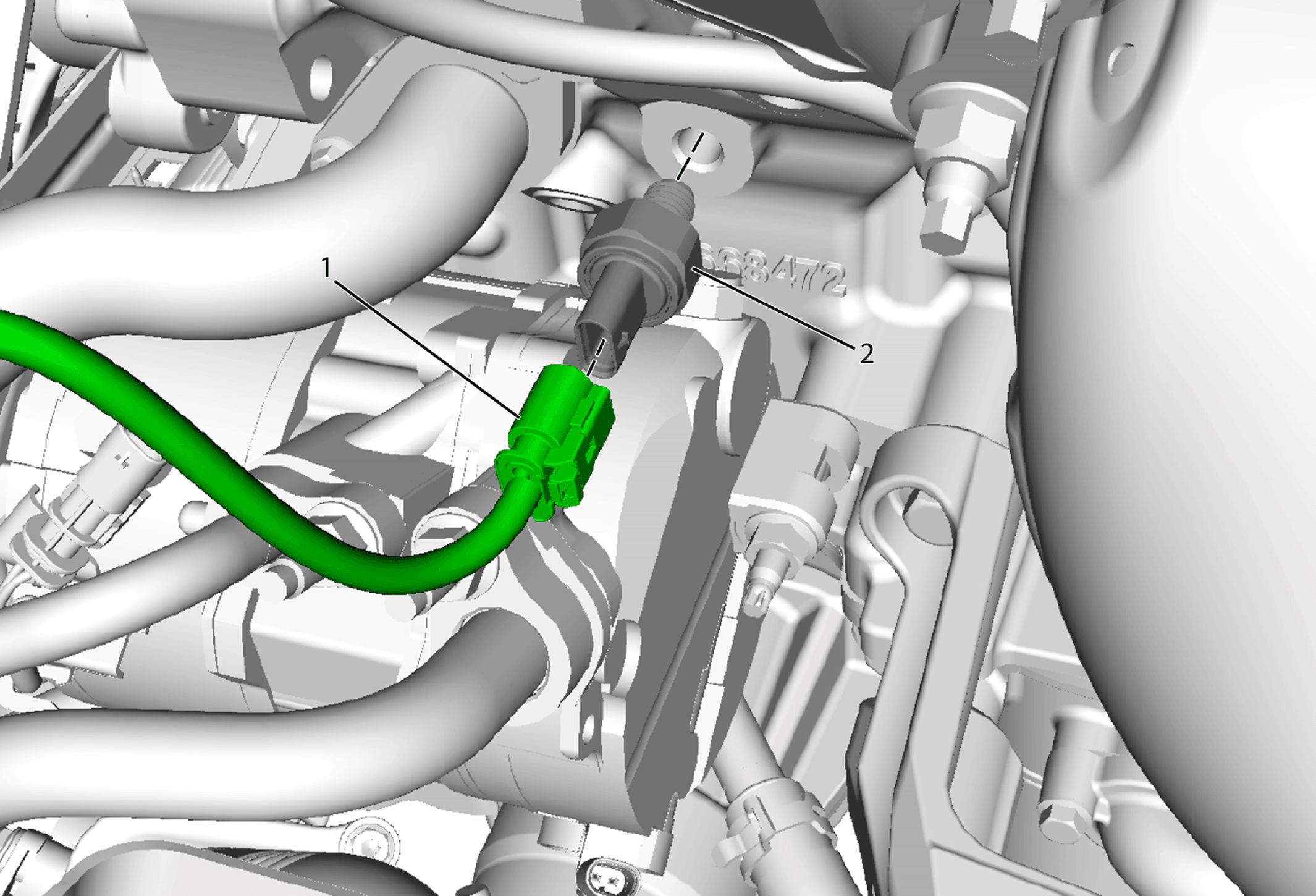

Fig 1: Engine Oil Pressure Sensor and/or Switch (LGX)
GM4262476Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Pressure Sensor Electrical Connector
2 Engine Oil Pressure Sensor and/or Switch
CAUTION: Refer to Component Fastener Tightening Caution .

Tighten
20 N.m (15 lb ft)
