Drive Belt Replacement (Except Hybrid)

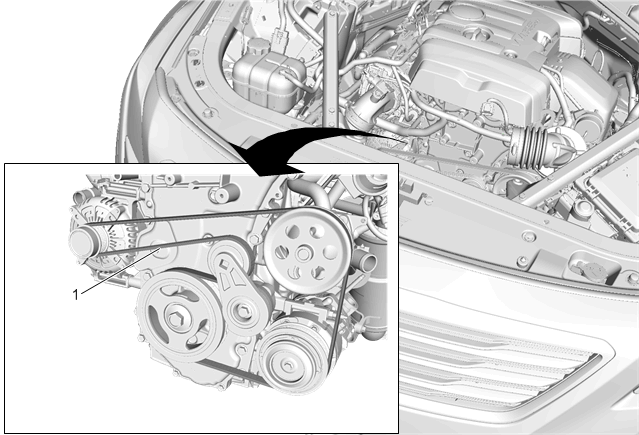

Fig 1: Drive Belt (Except Hybrid)
GM4246374Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Assembly Replacement
1 Drive Belt

Procedure

  1. Slowly release the tension on the drive belt tensioner.
  2. Remove the drive belt.
