Instrument Panel Cluster Trim Plate Replacement

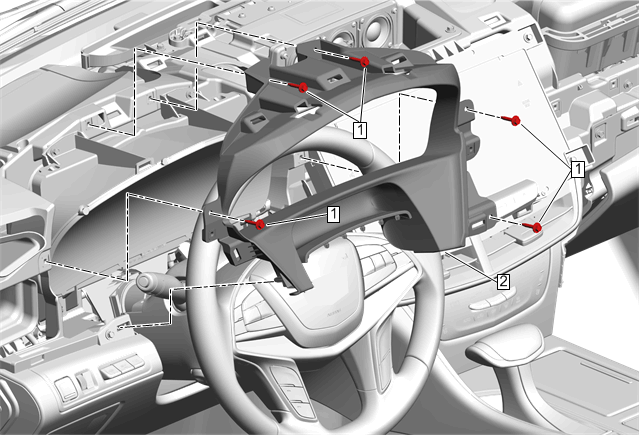

Fig 1: Instrument Panel Cluster Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Instrument Panel Upper Trim Panel Replacement
1	Instrument Panel Cluster Lower Trim Plate Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Cluster Trim Plate Procedure  Use a plastic trim tool if necessary.
