Sunshade Illuminated Mirror Lamp Bulb Replacement

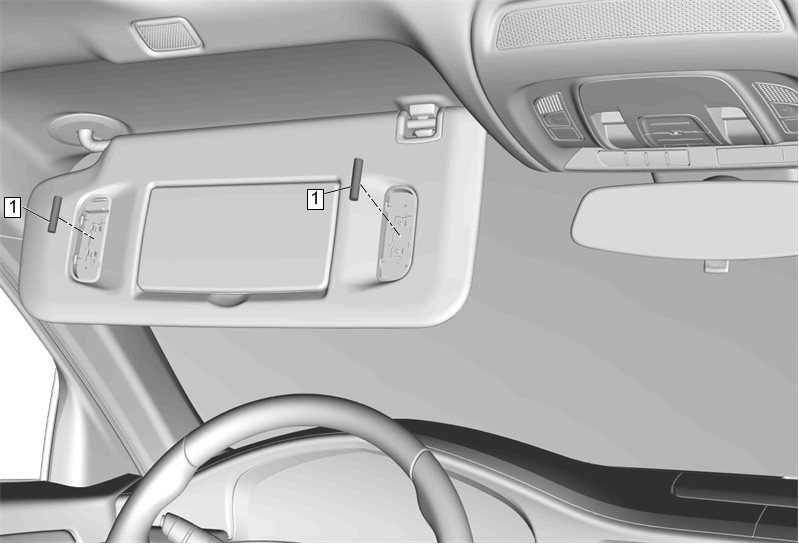

Fig 1: Sunshade Illuminated Mirror Lamp Bulb
GM4251268Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Sunshade Illuminated Mirror Lamp Lens Replacement
1 Sunshade Illuminated Mirror Lamp Bulb
