Roof Rail Rear Seat Position Reading and Courtesy Lamp Replacement

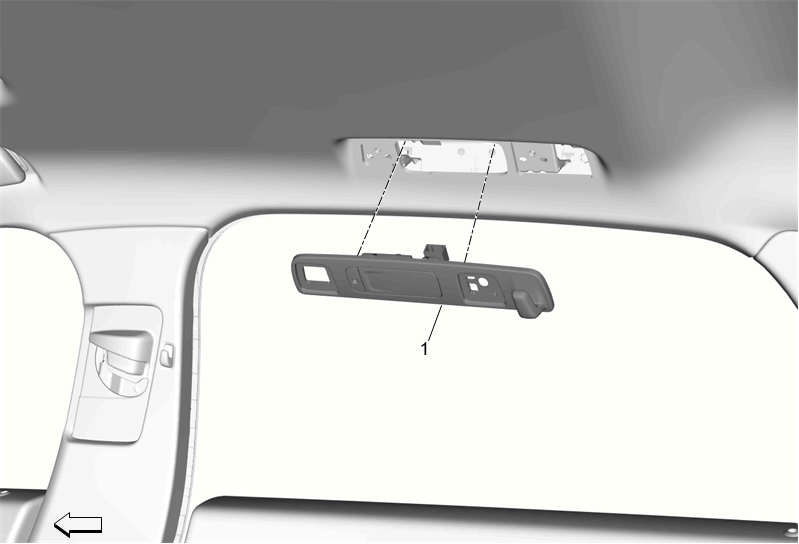

Fig 1: Roof Rail Rear Seat Position Reading and Courtesy Lamp
GM4252282Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Rail Assist Handle Replacement (Front)Roof Rail Assist Handle Replacement (Rear)
1 Roof Rail Rear Seat Position Reading and Courtesy Lamp

Procedure

  1. Release the top portion of the lamp from the headliner.
  2. Disconnect the electrical connector.
  3. Remove the lamp from the headliner.
