Instrument Panel Compartment Lamp Replacement

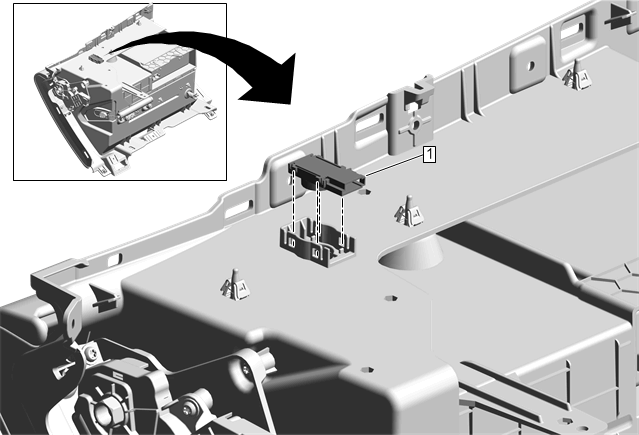

Fig 1: Instrument Panel Compartment Lamp
GM4249355Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Compartment Replacement
1 Instrument Panel Compartment Lamp
Procedure
Depress the tabs on the lamp switch to remove.
