Front Side Door Courtesy Lamp Bezel Replacement

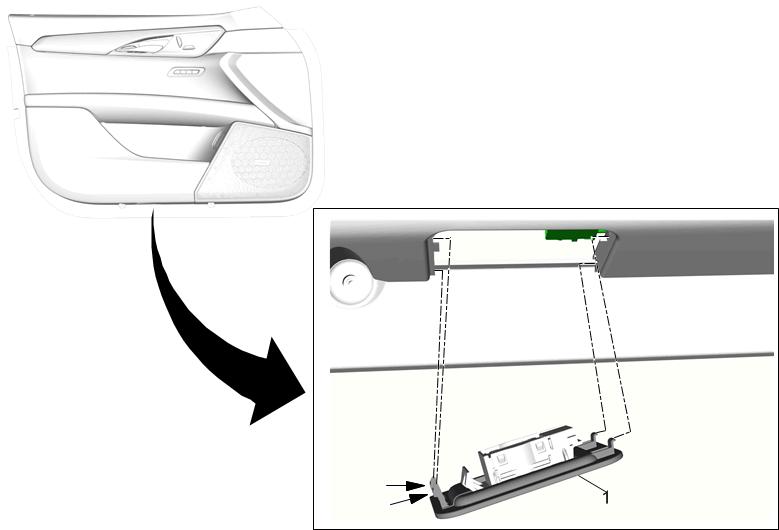

Fig 1: Front Side Door Courtesy Lamp Bezel
GM4250217Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Courtesy Lamp Bezel

Procedure

  1. Release the retaining tabs.
  2. Push downward and tilt forward to remove lamp front door trim.
  3. Disconnect the electrical connector.
  4. Transfer components as necessary.
