Center Reading and Courtesy Lamp Replacement

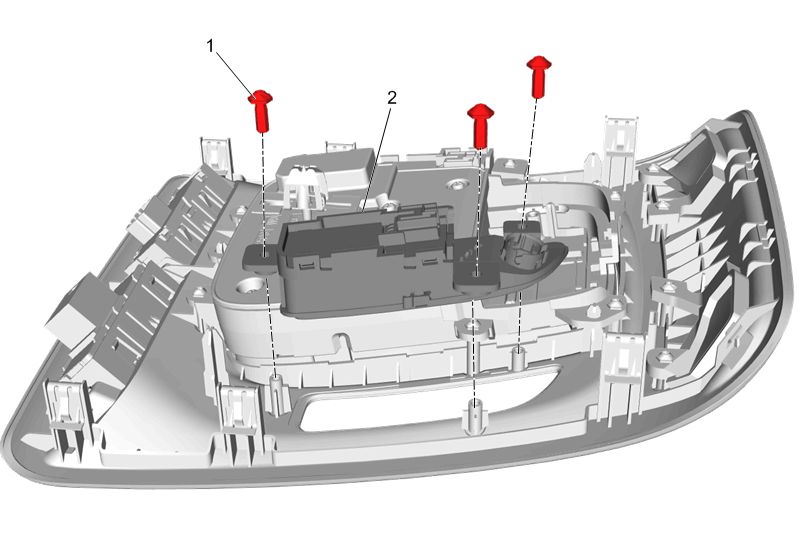

Fig 1: Center Reading and Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Roof Console Replacement
1	Center Reading and Courtesy Lamp Screw [3x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Center Reading and Courtesy Lamp Procedure  {If equipped} Theft Deterrent Module» Remove - Theft Deterrent Module Replacement
