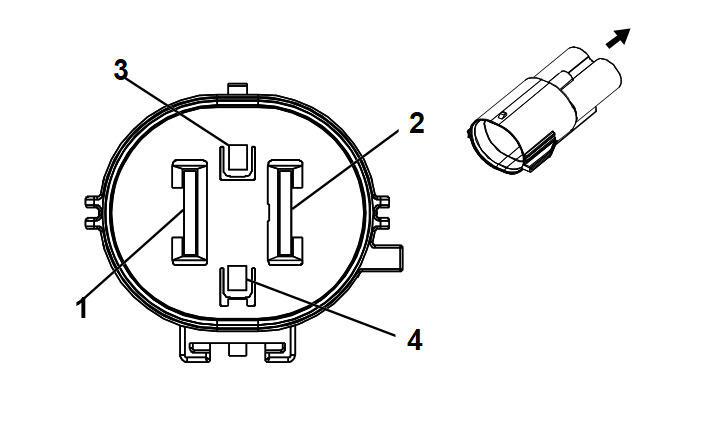

X900 Body Harness to Rear Axle Harness
|
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13672582
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.5, 9.5 Series, Sealed (BN)
|
Connector Part Information
- Harness Type: Rear Axle
- OEM Connector: 15538963
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.5, 9.5 Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-21 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
10 |
BK |
3250 |
I |
- |
Ground |
1 |
10 |
BK |
3250 |
II |
- |
| 2 |
10 |
RD/GN |
742 |
I |
- |
Battery Positive Voltage |
2 |
10 |
RD/GN |
742 |
II |
- |
| 3 - 4 |
- |
- |
- |
- |
- |
Not Occupied |
3 - 4 |
- |
- |
- |
- |
- |
