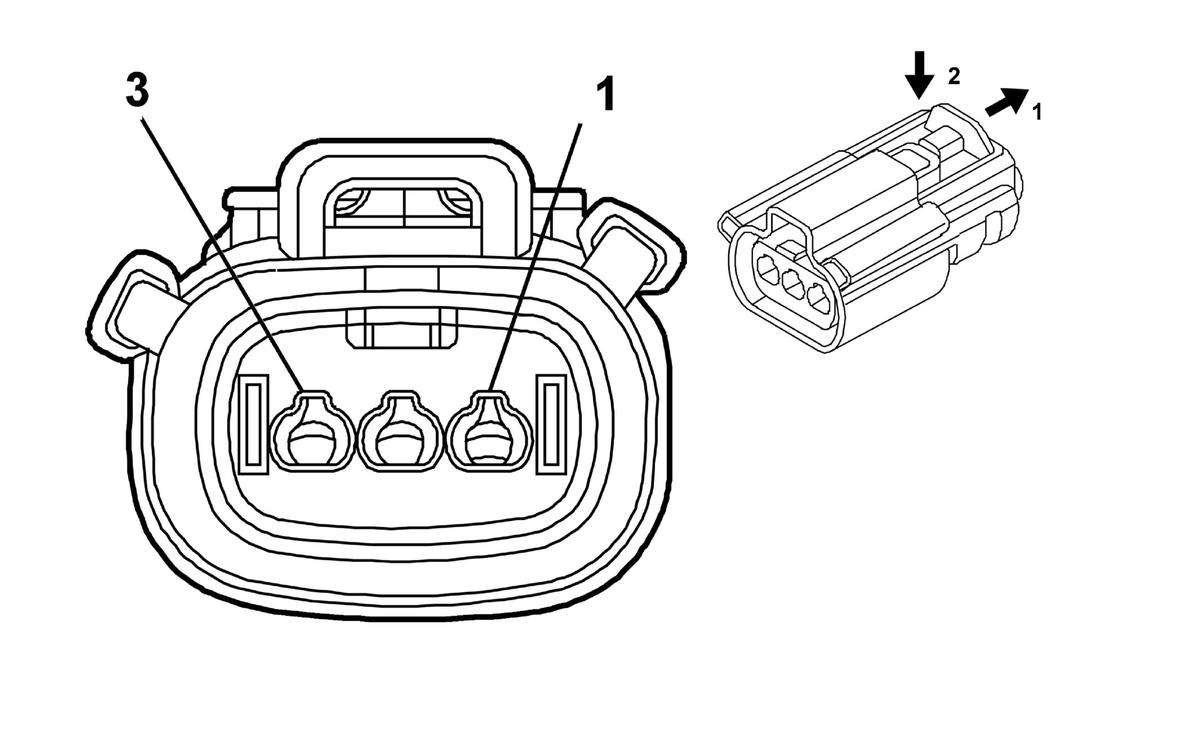

X416 Rear Fascia Harness to Back Up Lamp Harness (-T79)

Connector Part Information Harness Type: Rear Fascia OEM Connector: 15544714 Service Connector: Service by Harness - See Part Catalog Description: 3-Way F 1.5 Series, Sealed (GY)	Connector Part Information Harness Type: Back Up Lamp OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 3-Way M

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-2A (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-3 (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5 0.75	BK BK	3850 3850	I I	-T79+UKC/UVZ -T79-UKC/UVZ	Ground Ground	1	0.75	BK	3850	II	-
2	0.5	GN/WH	24	I	-	Backup Lamp Control	2	0.5	GN/WH	24	II	-
3	-	-	-	-	-	Not Occupied	3	-	-	-	-	-
