X315 Driver Seat Back Harness to Driver Seat Harness

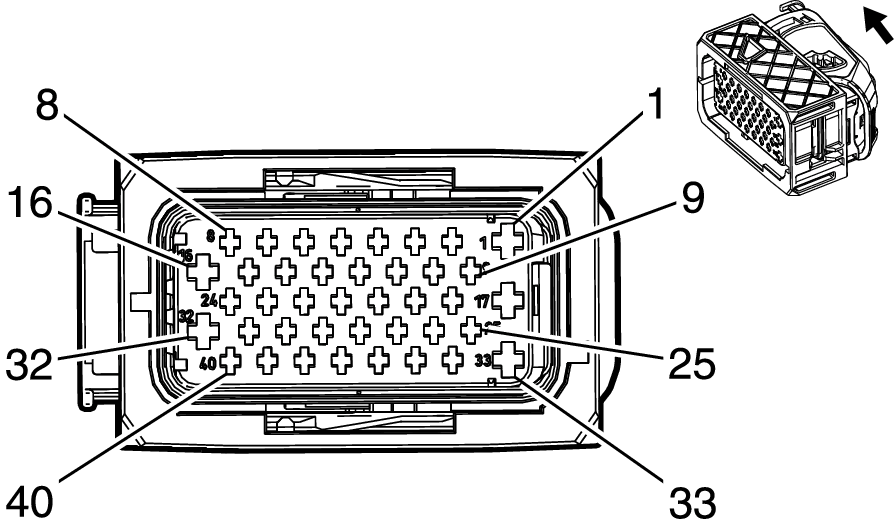

Connector Part Information Harness Type: Driver Seat Back OEM Connector: 13588546 Service Connector: Service by Harness - See Part Catalog Description: 40-Way F 1.5 DSQ, 2.8 ATS Series, Sealed (YE)	Connector Part Information Harness Type: Driver Seat OEM Connector: 13588545 Service Connector: Service by Harness - See Part Catalog Description: 40-Way M 1.5 DSQ, 2.8 ATS Series, Sealed (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	No Tool Required	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	No Tool Required	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	1.5	GN/YE	276	I	-	Driver Power Seat Recline Motor Forward Control	1	1.5	GN/YE	276	II	-
2	1.5	BU/YE	277	I	-	Driver Power Seat Recline Motor Rearward Control	2	1.5	BU/YE	277	II	-
3	0.35	WH/RD	3298	I	-	Memory Sensor High Reference 2	3	0.35	WH/RD	3298	II	-
4	0.35	WH/BK	570	I	-	Driver Memory Seat Recline Motor Position Sensor Signal	4	0.35	WH/BK	570	II	-
5	0.75	YE/BN	9013	I	AQ9	Upper Seat Back Motor - Left Rear Forward Control	5	0.75	YE/BN	9013	II	AQ9
6	0.75	YE/BU	9014	I	AQ9	Upper Seat Back Motor - Left Rear Rearward Control	6	0.75	YE/BU	9014	II	AQ9
7	0.35	WH	9012	I	AQ9	5V Reference	7	0.35	WH	9012	II	AQ9
8	-	-	-	-	-	Not Occupied	8	-	-	-	-	-
9	0.75	BN	2432	I	KA1	Driver Heated Back Element Control	9	0.75	BN	2432	II	KA1
10	0.75	BN/BK	2078	I	KA1	Driver Heated Seat Element Low Reference	10	0.75	BN/BK	2078	II	KA1
11	0.35	BU	2425	I	KA1	Driver Heated Back NTC Signal	11	0.35	BU	2425	II	KA1
12	0.35	BK/VT	2080	I	KA1	Driver Heated Seat NTC Low Reference	12	0.35	BK/VT	2080	II	KA1
13	0.35	GN/VT	5906	I	KU9	Driver Seat Vent Motor Control 1	13	0.35	RD	5906	II	KU9
14	0.5	BK	2150	I	KU9	Ground	14	0.5	BK	2150	II	KU9
15	0.5	VT/BK	739	I	KU9	Run/Crank Ignition 1 Voltage	15	0.5	VT/BK	739	II	KU9
16	0.75 0.5	BU RD/WH	611 2040	I I	AL2 AR9/AQ9	Driver Power Seat Lumbar Motor Forward Control Battery Positive Voltage	16	0.75 0.5	BU RD/WH	611 2040	II II	AL2 AR9/AQ9
17	0.75 0.5	VT BK	610 2150	I I	AL2 AR9/AQ9	Driver Power Seat Lumbar Motor Rearward Control Ground	17	0.75 0.5	VT BK	610 2150	II II	AL2 AR9/AQ9
18	0.35 0.35	YE GN/GY	1063 3758	I I	AL2 AR9/AQ9	Driver Memory Seat Lumbar Horizontal Position Sensor Signal Local Interconnect Network Serial Data Bus 13	18	0.35 0.35	YE GN/GY	1063 3758	II II	AL2 AR9/AQ9
19	0.75 0.5	WH/RD WH/BU	6207 4891	I I	AL2 AQ9	Memory Sensor High Reference Driver Bolster Pump Control	19	0.75 0.5	WH/RD WH/BU	6207 4891	II II	AL2 AQ9
20	0.35 0.5	BK/GY BK	6206 2150	I I	AL2 AQ9	Memory Sensor Low Reference Ground	20	0.35 0.5	BK/GY BK	6206 2150	II II	AL2 AQ9
21	0.5	OG/BU	3068	I	-	Driver Side Impact Module High Control	21	0.5	OG/BU	3068	II	-
22	0.5	GN/OG	3069	I	-	Driver Side Impact Module Low Control	22	0.5	GN/OG	3069	II	-
23 - 28	-	-	-	-	-	Not Occupied	23 - 28	-	-	-	-	-
29	0.35	VT/GY	4940	I	UWG	Battery Positive Voltage	29	0.35	VT/GY	4940	II	UWG
30	0.35	GN/YE	7066	I	UWG	Entertainment Remote Enable Signal	30	0.35	GN/YE	7066	II	UWG
31	0.35	BK/WH	1851	I	UWG	Signal Ground	31	0.35	BK/WH	1851	II	UWG
32	0.75	GN/VT	5757	I	UQH	Left Front Seat Left Speaker Control (+)	32	0.75	GN/VT	5757	II	UQH
33	0.75	GN/GY	5767	I	UQH	Left Front Seat Left Speaker (-) Low Reference	33	0.75	GN/GY	5767	II	UQH
34	0.75	BN/GY	5758	I	UQH	Left Front Seat Right Speaker Control (+)	34	0.75	BN/GY	5758	II	UQH
35	0.75	GY/BK	5768	I	UQH	Left Front Seat Right Speaker (-) Low Reference	35	0.75	GY/BK	5768	II	UQH
36 - 40	-	-	-	-	-	Not Occupied	36 - 40	-	-	-	-	-
