X310 Driver Seat Harness to Body Harness

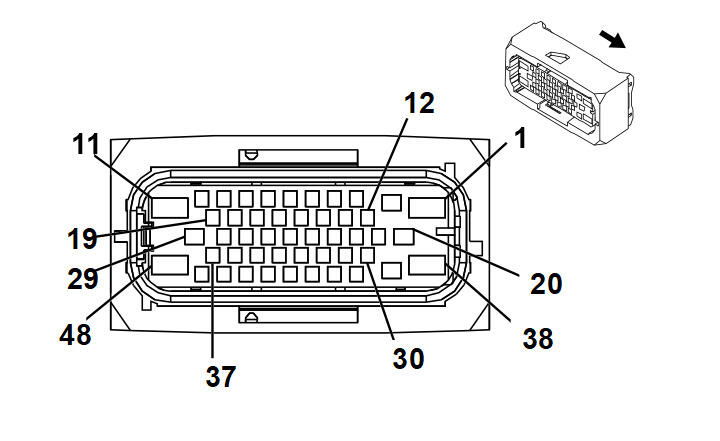

GM3620765

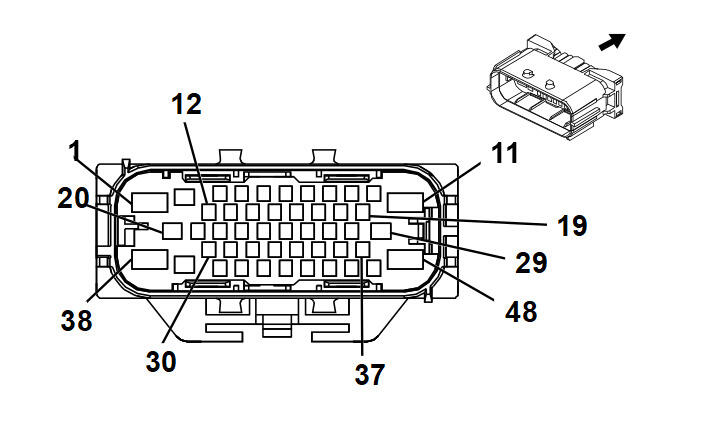

GM3240126
Connector Part Information
  • Harness Type: Driver Seat
  • OEM Connector: Not Available
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 48-Way F
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15513436
  • Service Connector: 19301796
  • Description: 48-Way M 1.6, 2.8, 5.8 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-2A (GY) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-31 (OR) No Tool Required Not Required Not Required Not Required Not Required
III Not Required J-35616-4A (PU) No Tool Required Not Required Not Required Not Required Not Required
IV 13575380 J-35616-3 (GY) J-38125-560 Not Available Not Available Not Available Not Available
V 13578882 J-35616-3 (GY) J-38125-560 Not Available Not Available Not Available Not Available
VI 13580819 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
VII 13580827 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
VIII 19119926 J-35616-3 (GY) J-38125-36 Not Available Not Available Not Available Not Available
IX 19301750 J-35616-32 (OR) J-38125-36 Not Available Not Available Not Available Not Available
X 19331731 J-35616-3 (GY) J-38125-560 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2.5 BK 2150 I - Ground 1 2.5 BK 2150 VIII -
2 0.5 RD/GY 2042 III - Battery Positive Voltage 2 0.5 RD/GY 2042 VI -
3 0.5 BK/OG 1363 I - Driver Seat Belt Switch Low Reference 3 0.5 BK/OG 1363 IV -
4 0.5 OG/BN 238 I - Driver Seat Belt Switch Signal 4 0.5 OG/BN 238 IV -
5 - - - - - Not Occupied 5 - - - - -
6 0.35 GN/BU 6133 I KA1 Local Interconnect Network Serial Data Bus 2 6 0.35 GN/BU 6133 V KA1
7 0.35 BK/BU 5978 I - Memory Switch Low Reference 7 0.35 BK/BU 5978 V -
8 0.35 WH 615 I - Memory Seat Switch Signal 1 8 0.35 WH 615 V -
9 0.35 GN 5060 I - Low Speed GMLAN Serial Data 9 0.35 GN 5060 V -
10 0.35 BK/GY 2435 I KA1 Passenger Heated Seat NTC Low Reference 10 0.35 BK/GY 2435 V KA1
11 0.5 RD/WH 2040 II AR9/AQ9 Battery Positive Voltage 11 0.5 RD/WH 2040 IX AR9/AQ9
12 0.75 GN/VT 5757 I UQH Left Front Seat Left Speaker Control (+) 12 0.75 GN/VT 5757 IV UQH
13 0.75 GN/GY 5767 I UQH Left Front Seat Left Speaker (-) Low Reference 13 0.75 GN/GY 5767 IV UQH
14 0.75 BN/GY 5758 I UQH Left Front Seat Right Speaker Control (+) 14 0.75 BN/GY 5758 IV UQH
15 0.75 GY/BK 5768 I UQH Left Front Seat Right Speaker (-) Low Reference 15 0.75 GY/BK 5768 IV UQH
16 - - - - - Not Occupied 16 - - - - -
17 0.35 GN/WH 7530 I - Local Interconnect Network Serial Data Bus 8 17 0.35 GN/WH 7530 V -
18 0.5 OG/BU 3068 I - Driver Side Impact Module High Control 18 0.5 OG/BU 3068 X -
19 0.5 GN/OG 3069 I - Driver Side Impact Module Low Control 19 0.5 GN/OG 3069 X -
20 0.75 VT/BK 739 III KU9 Run/Crank Ignition 1 Voltage 20 0.75 VT/BK 739 VII KU9
21 0.75 RD/BU 5240 I KA1 Battery Positive Voltage 21 0.75 RD/BU 5240 IV KA1
22 0.75 VT/WH 1139 I KA1 Run/Crank Ignition 1 Voltage 22 0.75 VT/WH 1139 IV KA1
23 - - - - - Not Occupied 23 - - - - -
24 0.75 WH/BN 2481 I KA1 Passenger Heated Back Element Control 24 0.75 WH/BN 2481 IV KA1
25 0.35 BU/BN 5915 I KU9 Passenger Seat Fan Speed Control 25 0.35 BU/BN 5915 V KU9
26 0.75 GY/BK 2480 I KA1 Passenger Heated Seat Element Low Reference 26 0.75 GY/BK 2480 IV KA1
27 - - - - - Not Occupied 27 - - - - -
28 0.35 BU/GN 614 I - Memory Seat Switch Set Signal 28 0.35 BU/GN 614 V -
29 0.75 BN/BU 2479 III KA1 Passenger Heated Seat Element Control 29 0.75 BN/BU 2479 VII KA1
30 0.5 WH/GY 2434 I KA1 Passenger Heated Seat NTC Signal 30 0.5 WH/GY 2434 IV KA1
31 0.35 WH/BU 2436 I KA1 Passenger Heated Back NTC Signal 31 0.35 WH/BU 2436 V KA1
32 - 34 - - - - - Not Occupied 32 - 34 - - - - -
35 0.35 WH/YE 7557 I TSP LED Ambient Lighting Control 1 35 0.35 WH/YE 7557 V TSP
36 0.5 GY 157 I TSP Interior Lamp Control 36 0.5 GY 157 IV TSP
37 0.35 GN/YE 7066 I UWG Entertainment Remote Enable Signal 37 0.35 GN/YE 7066 V UWG
38 - - - - - Not Occupied 38 - - - - -
39 0.5 RD/BN 4940 III UWG Battery Positive Voltage 39 0.5 RD/BN 4940 VI UWG
40 0.5 VT/OG 3482 I - Driver Seat Belt Anchor Pretensioner Low Control 40 0.5 VT/OG 3482 X -
41 0.5 OG/YE 3481 I - Driver Seat Belt Anchor Pretensioner High Control 41 0.5 OG/YE 3481 X -
42 0.5 BK/WH 1851 I - Signal Ground 42 0.5 BK/WH 1851 IV -
43 - 45 - - - - - Not Occupied 43 - 45 - - - - -
46 0.35 GN/GY 3758 I - Local Interconnect Network Serial Data Bus 13 46 0.35 GN/GY 3758 V -
47 - - - - - Not Occupied 47 - - - - -
48 2.5 RD/GY 5540 I - Battery Positive Voltage 48 2.5 RD/GY 5540 VIII -
