X300 Instrument Panel Harness to Floor Console Harness

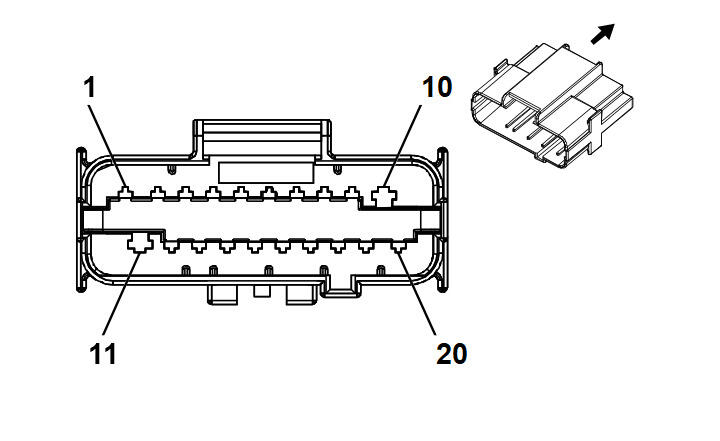

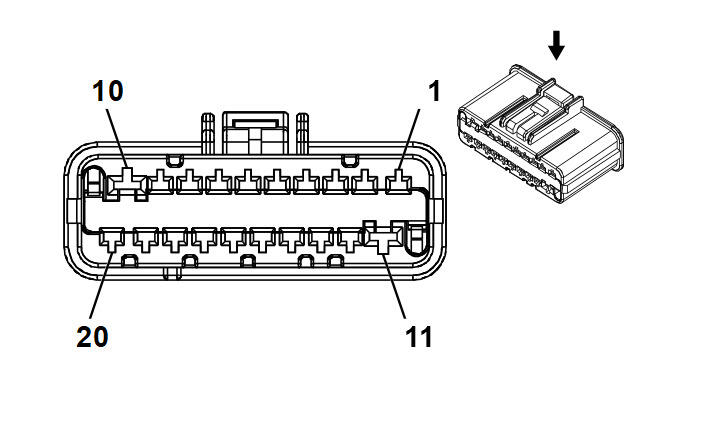

Connector Part Information Harness Type: Instrument Panel OEM Connector: 13842686 Service Connector: 13587962 Description: 20-Way F 1.5, 2.8 Series (BK)	Connector Part Information Harness Type: Floor Console OEM Connector: 13580851 Service Connector: Service by Harness - See Part Catalog Description: 20-Way M 1.5, 2.8 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575808	J-35616-2A (GY)	J-38125-217	Not Available	Not Available	Not Available	Not Available
II	13575809	J-35616-2A (GY)	J-38125-217	Not Available	Not Available	Not Available	Not Available
III	13580025	J-35616-35 (VT)	J-38125-11A	7116-4111-02	Yazaki 9	C	A
IV	19300638	J-35616-3 (GY)	J-38125-560	Not Available	Not Available	Not Available	Not Available
V	Not Required	Not Available	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	GY/BK	3276	II	-	Vehicle Anti-Theft System Immobilizer Control	1	0.35	GY/BK	3276	V	-
2	0.35	L-GN/GY	3277	II	-	Vehicle Anti-Theft System Immobilizer Low Reference	2	0.35	L-GN/GY	3277	V	-
3	0.35	RD/L-GN	6940	II	UWG	Battery Positive Voltage	3	0.35	RD/L-GN	6940	V	UWG
4	-	-	-	-	-	Not Occupied	4	-	-	-	-	-
5	0.35	VT/L-GN	7558	II	-	LED Ambient Lighting Control 2	5	0.35	VT/L-GN	7558	V	-
6	0.35	VT	1701	II	K4C	Retained Accessory Power Ignition	6	0.35	VT	1701	V	K4C
7	0.35	RD/VT	340	II	-	Battery Positive Voltage Battery Positive Voltage	7	0.35 0.35	RD/VT RD/VT	340 340	V	- -
7	0.35	RD/VT	340	II	-	Battery Positive Voltage Battery Positive Voltage	7	0.35 0.35	RD/VT RD/VT	340 340	V	- -
8	0.35	L-GN	4512	II	K4C	Wireless Charging System Charge Indicator Control	8	0.35	L-GN	4512	V	K4C
9	0.35	L-GN/WH	7533	II	-	Local Interconnect Network Serial Data Bus 11	9	0.35	L-GN/WH	7533	V	-
10	1	BK	1450	III	-	Ground	10	1	BK	1450	V	-
11	1	VT	1001	III	-	Retained Accessory Power Ignition	11	1	VT	1001	V	-
12	0.13	D-BU	1788	IV	-	Traction Control Switch Signal 1	12	0.13	D-BU	1788	V	-
13	0.5	BK	1450	II	-	Ground	13	0.5	BK	1450	V	-
14	1	BK/WH	1551	I	-	Signal Ground	14	1	BK/WH	1551	V	-
15	0.35	L-GN/YE	7531	II	C24	Local Interconnect Network Serial Data Bus 9	15	0.35	L-GN/YE	7531	V	C24
16	0.35	L-GN	5060	II	-	Low Speed GMLAN Serial Data	16	0.35	L-GN	5060	V	-
17	0.35	L-GN	5060	II	UWG	Low Speed GMLAN Serial Data	17	0.35	L-GN	5060	V	UWG
18	0.35	GY/VT	3998	II	-	MOST Serial Data (+)	18	0.35	GY/VT	3998	V	-
19	0.35	WH/L-GN	3997	II	-	MOST Serial Data (-)	19	0.35	WH/L-GN	3997	V	-
20	0.35	D-BU	9844	II	JM8	Auto Hold Switch Signal	20	0.35	D-BU	9844	V	JM8
