Power, Ground, Serial Data and Subsystem References

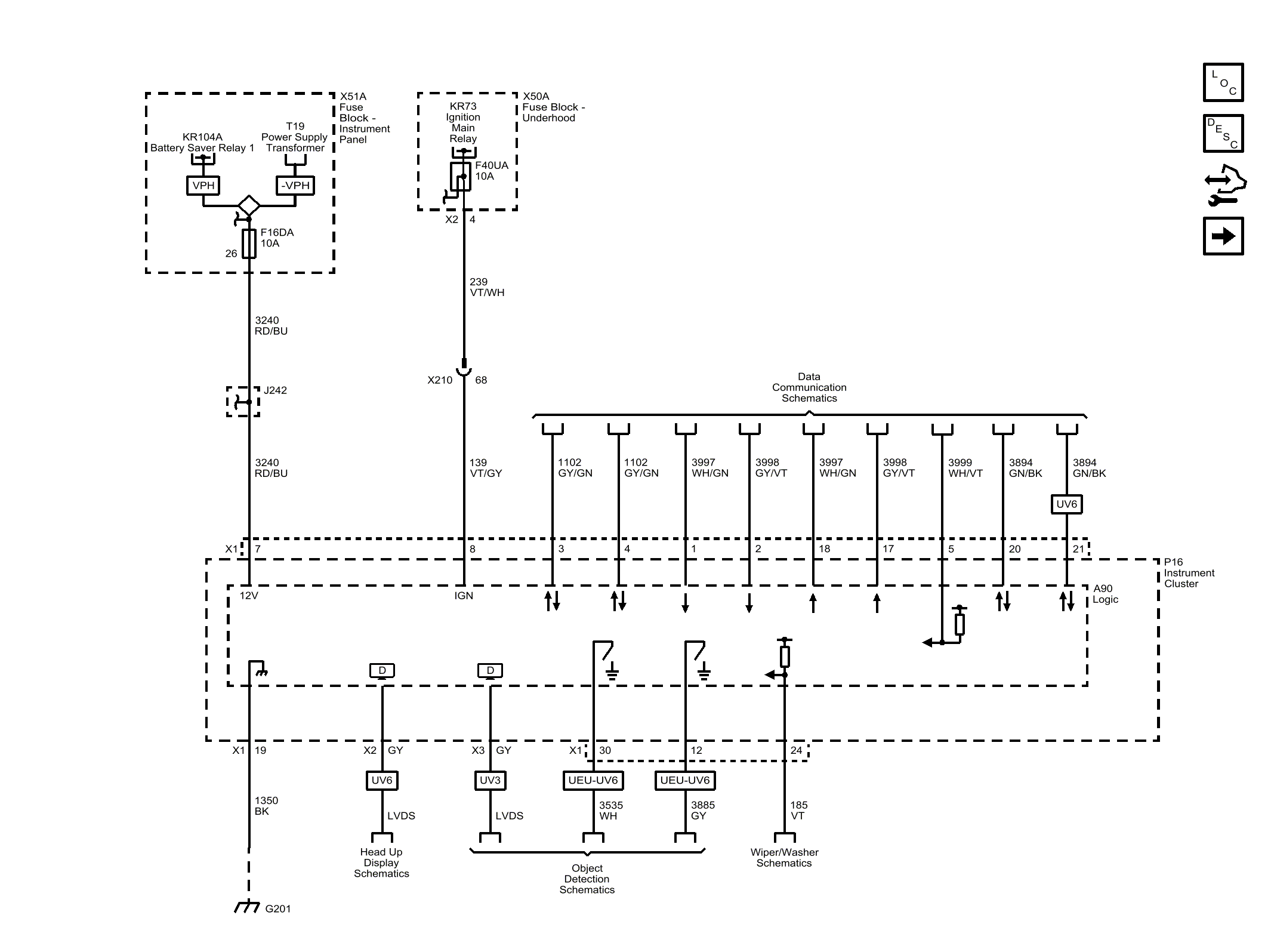

Fig 1: Power, Ground, Serial Data and Subsystem References

GM4489745

Courtesy of GENERAL MOTORS COMPANY
