Instrument Cluster Wiring Schematics: Indicators

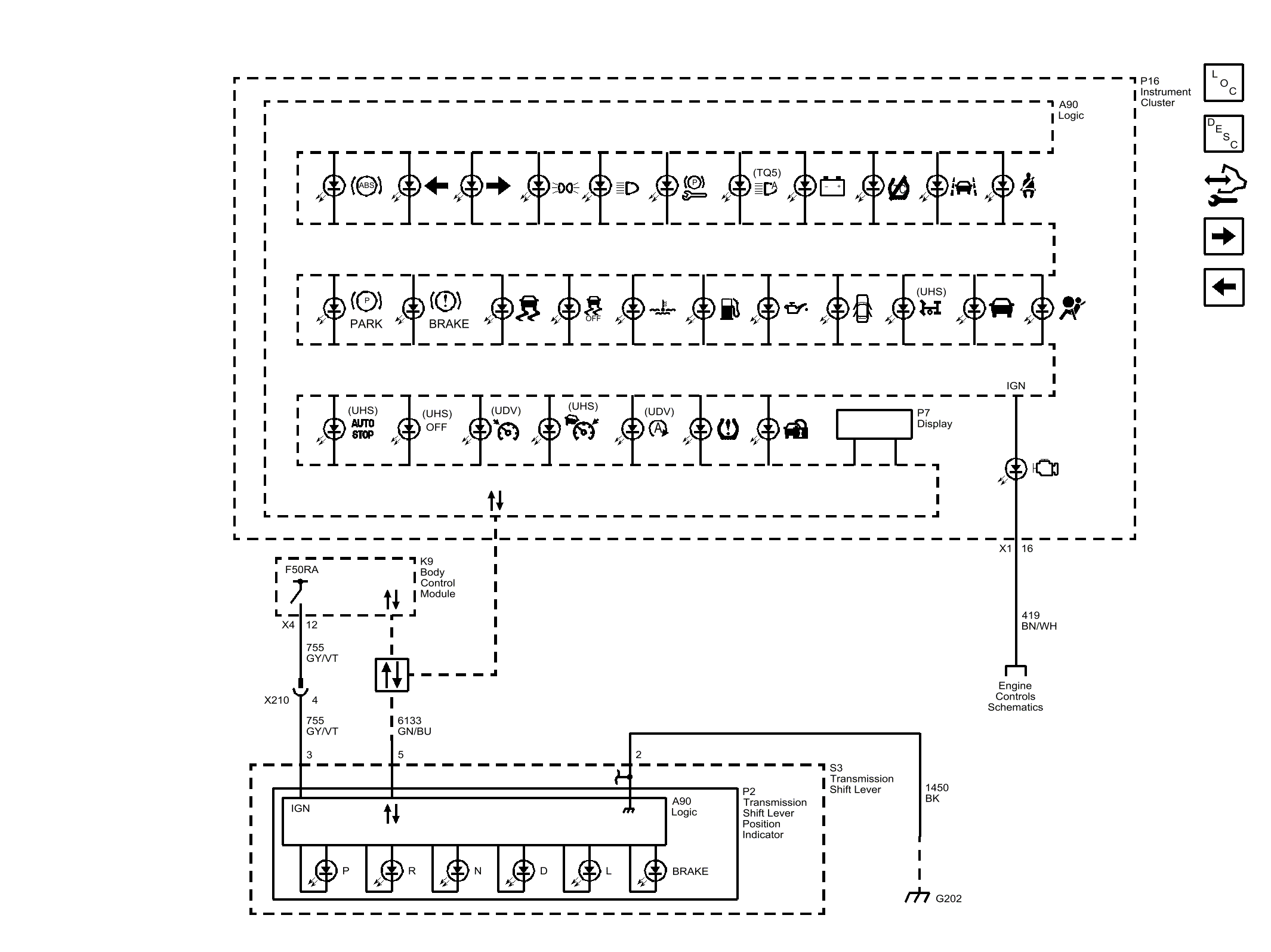

Fig 1: Indicators

GM4489749

Courtesy of GENERAL MOTORS COMPANY
