Instrument Cluster Wiring Schematics: Gauges

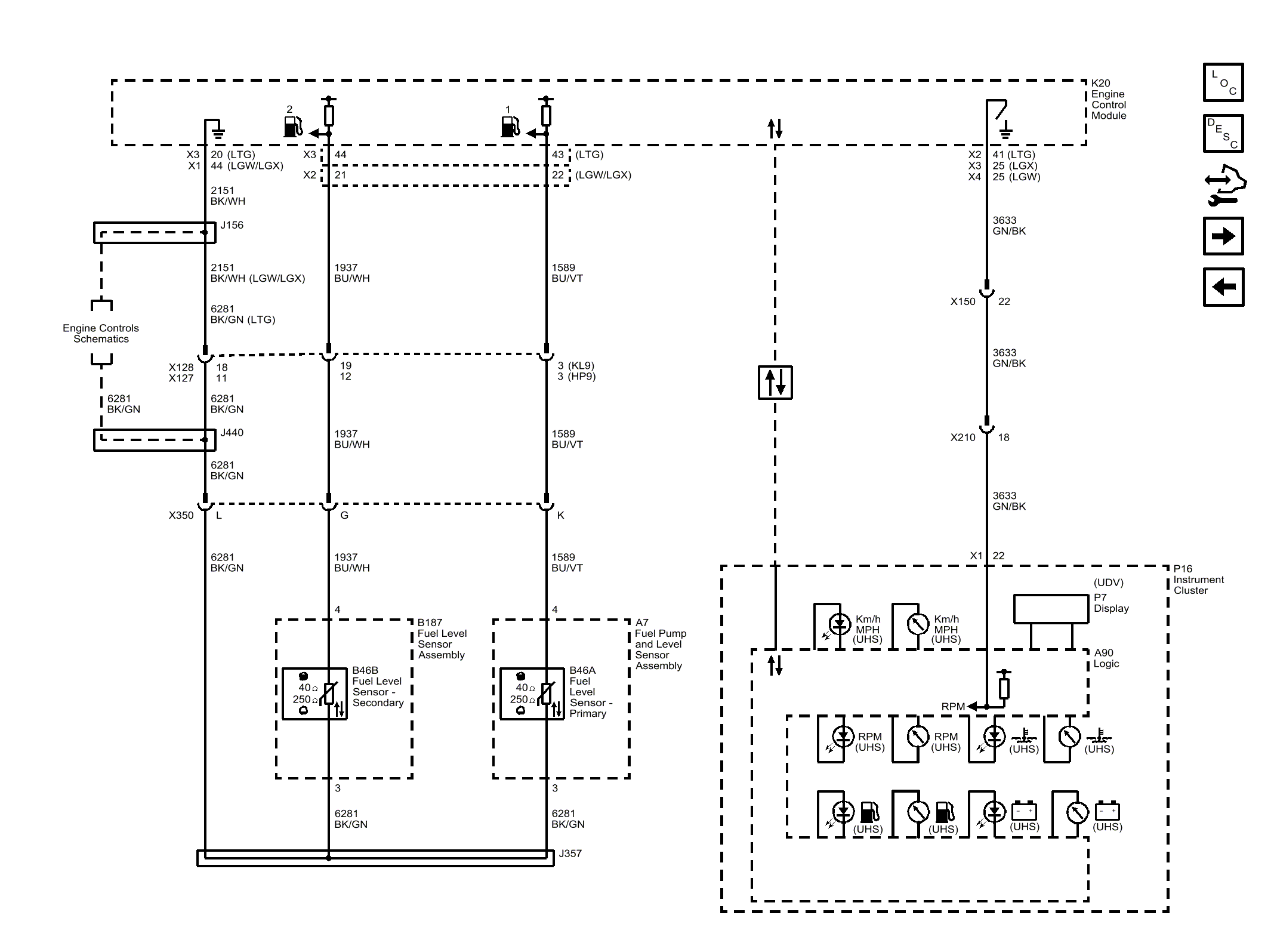

Fig 1: Gauges

GM4489748

Courtesy of GENERAL MOTORS COMPANY
