Instrument Panel Compartment and Overhead Lamps

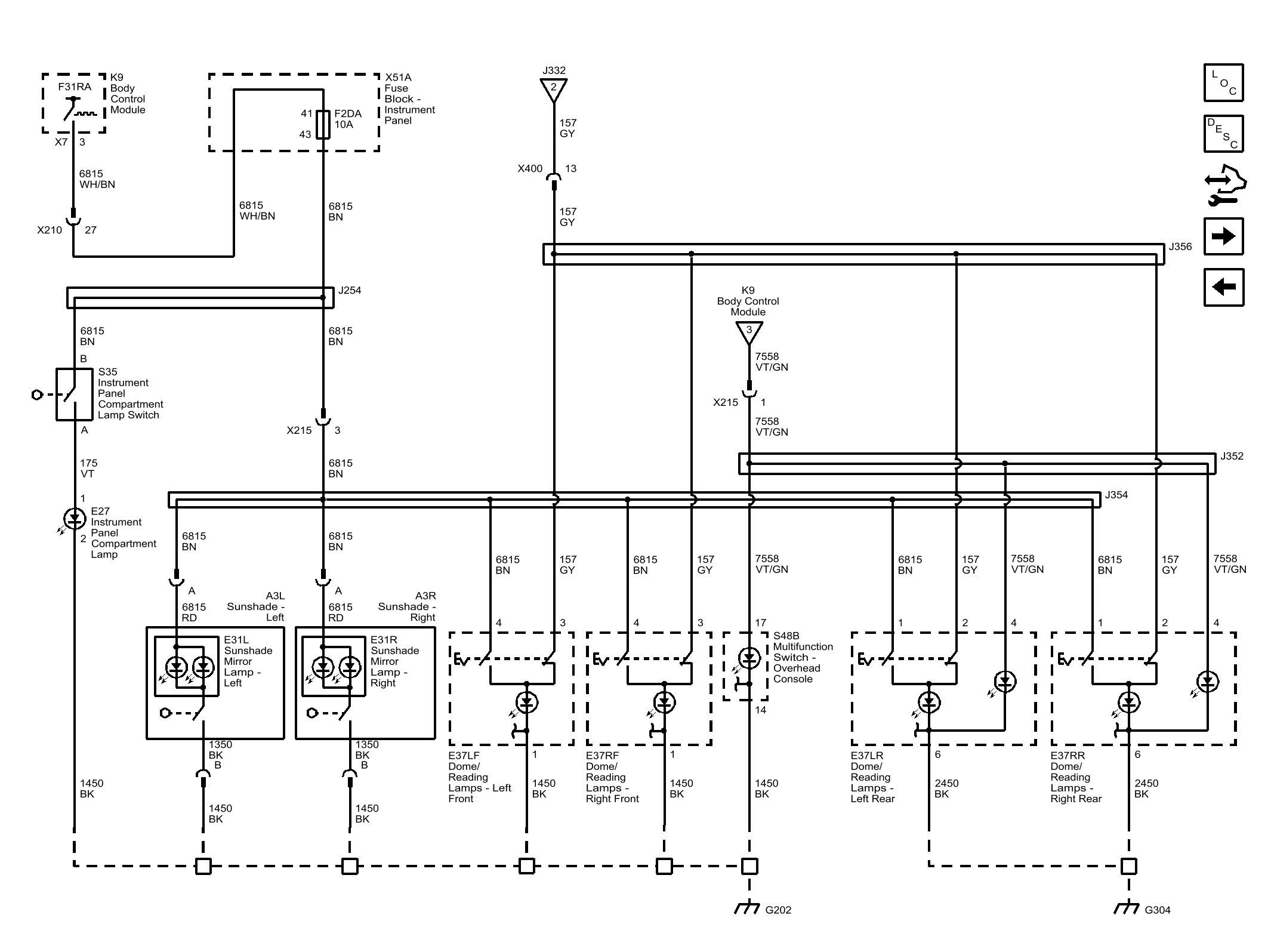

Fig 1: Instrument Panel Compartment and Overhead Lamps

GM4489666

Courtesy of GENERAL MOTORS COMPANY
