Center Console Compartment, Instrument Panel Accent (TSQ) and Front Floor Courtesy Lamps

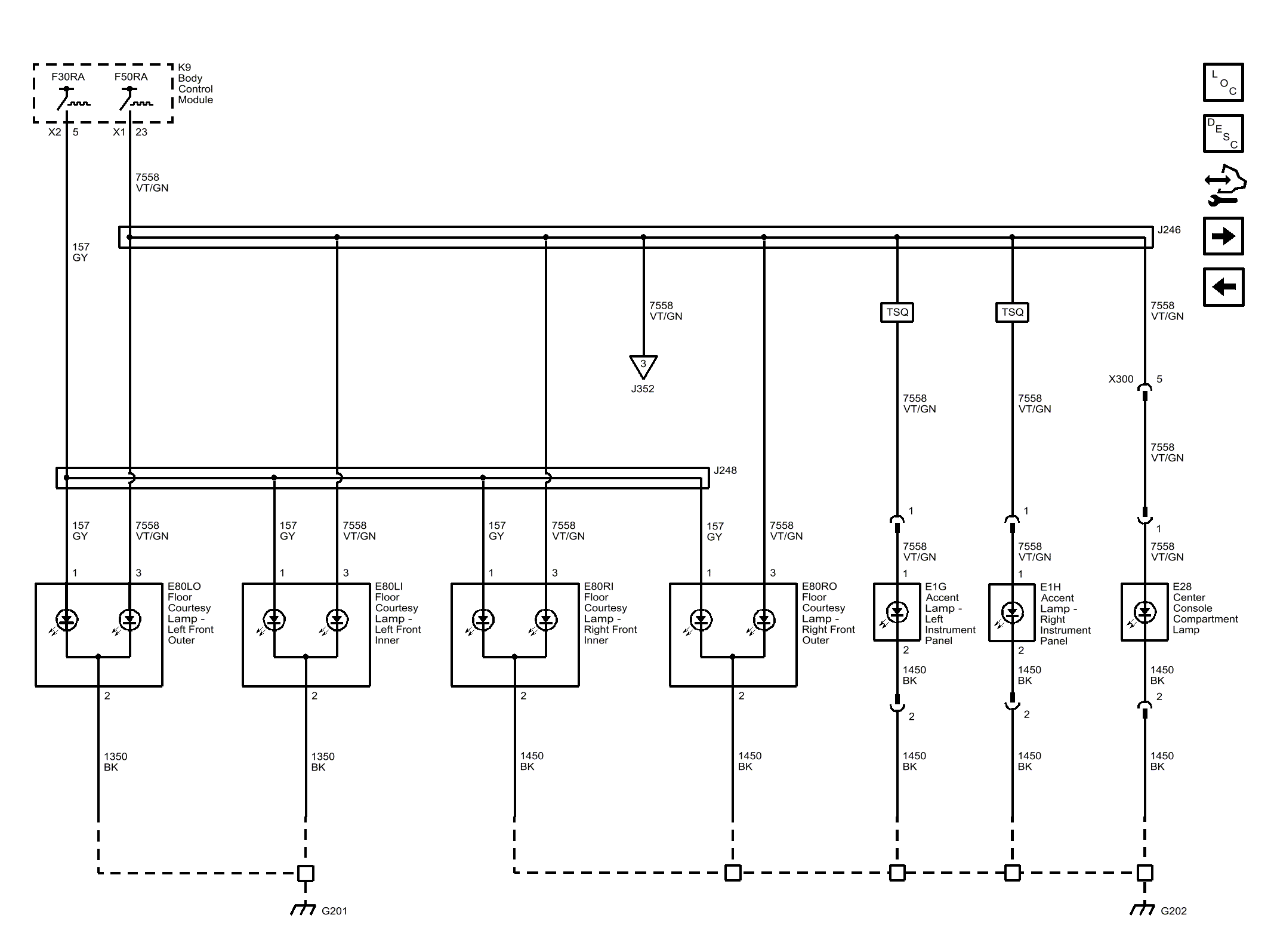

Fig 1: Center Console Compartment, Instrument Panel Accent (TSQ) and Front Floor Courtesy Lamps
GM4489663Courtesy of GENERAL MOTORS COMPANY
