Instrument Panel and Overhead Lamps (2 of 2)

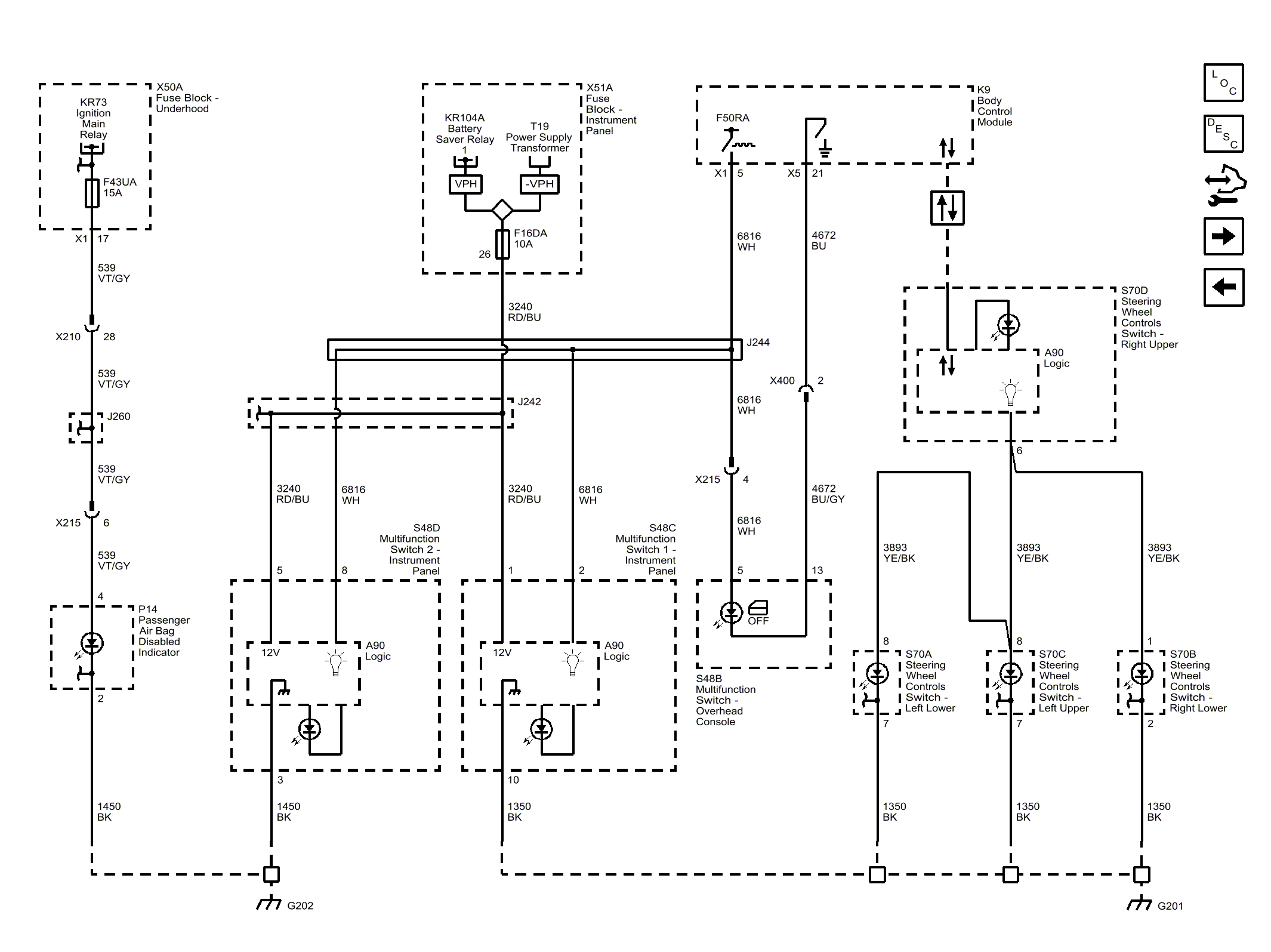

Fig 1: Instrument Panel and Overhead Lamps (2 of 2)

GM4489677

Courtesy of GENERAL MOTORS COMPANY
