Controls, Instrument Panel Lamps and Overhead Lamps (1 of 2)

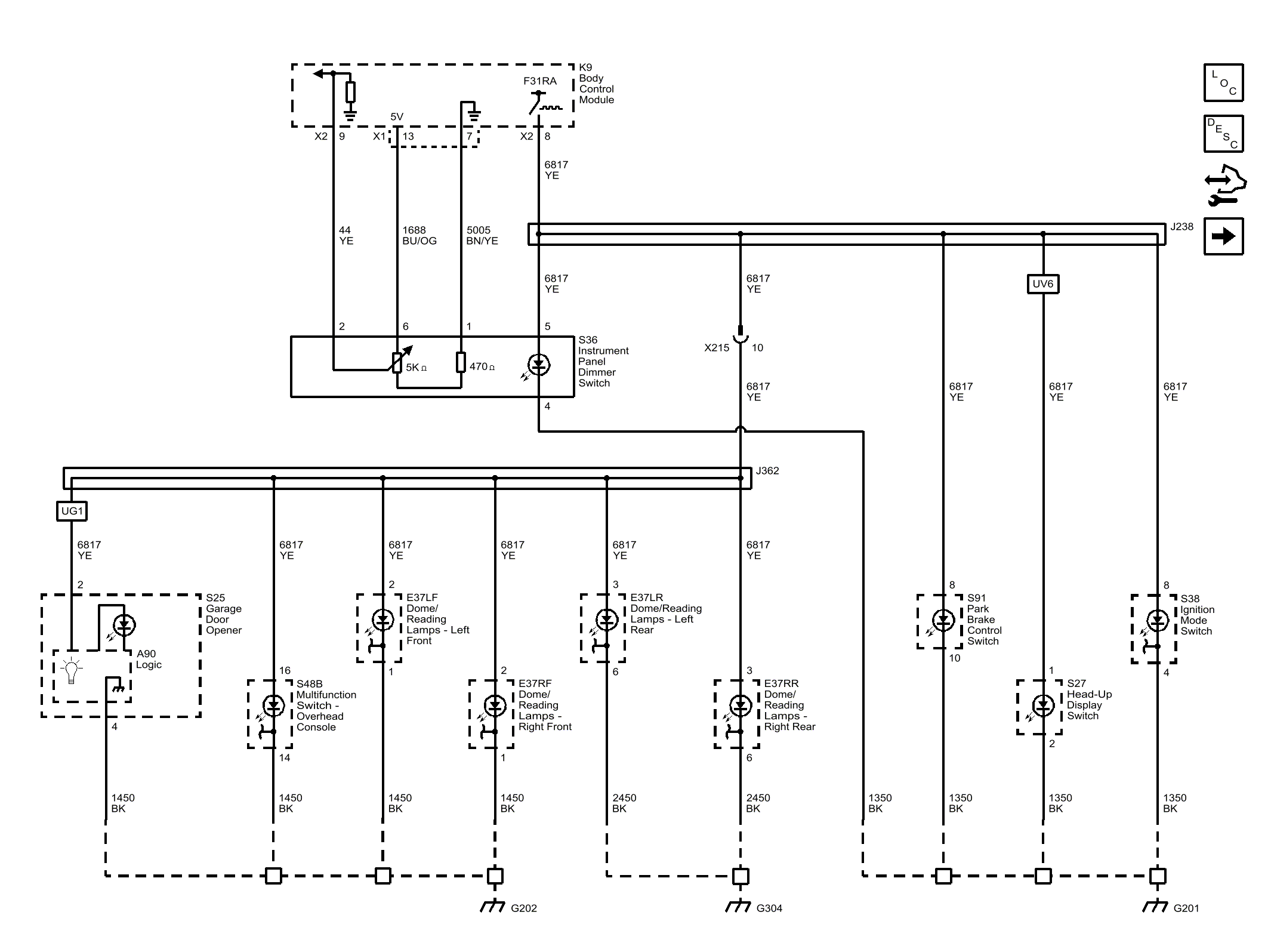

Fig 1: Controls, Instrument Panel Lamps and Overhead Lamps (1 of 2)

GM4489669

Courtesy of GENERAL MOTORS COMPANY
