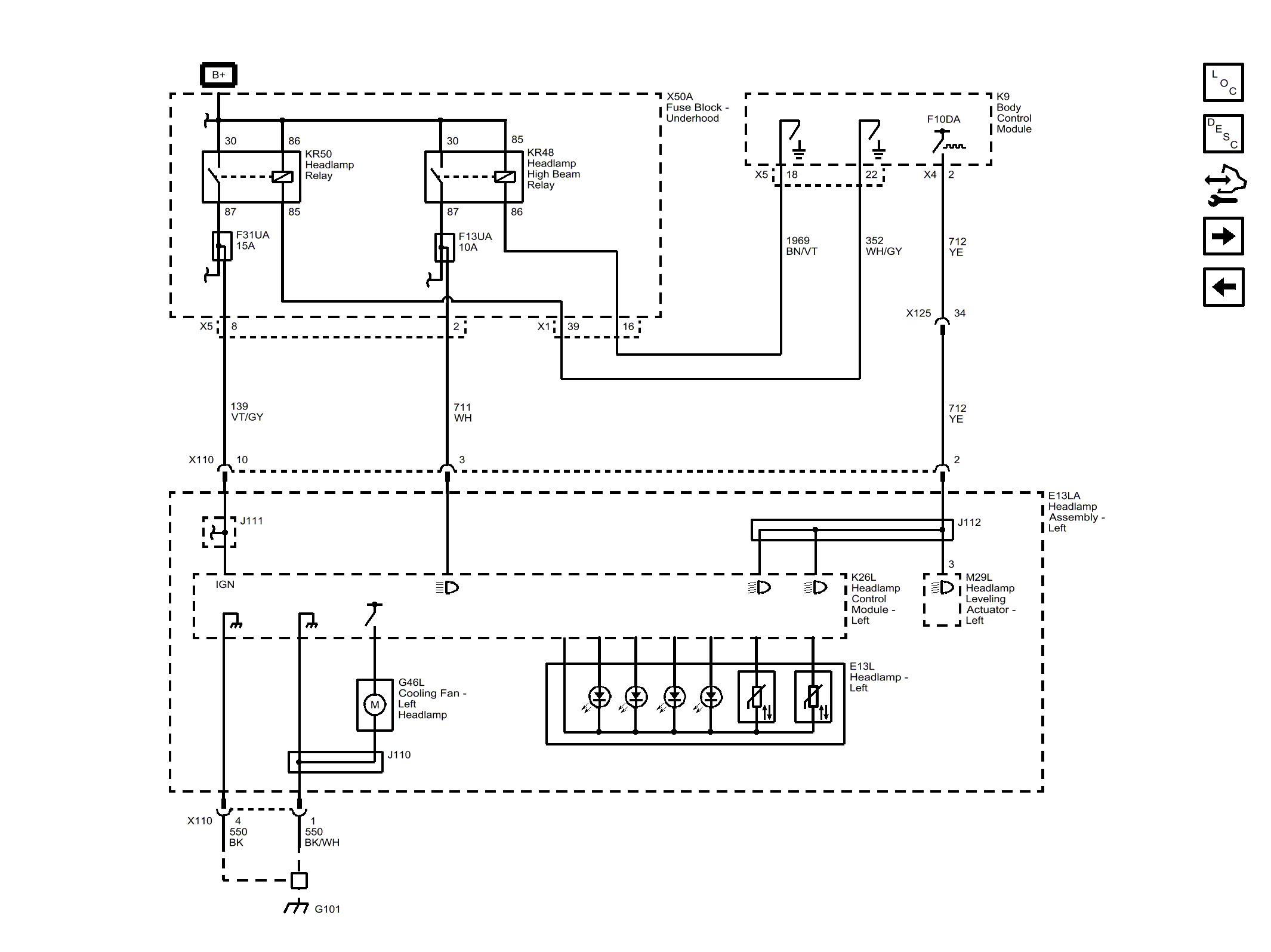

Home >> Cadillac >> 2017 >> CT6 Plug-In >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Headlights/Daytime Running Lights (DRL) Wiring Schematics >> Lighting - Left Headlamp
