Front Lamps and Repeater Turn Signals - Left

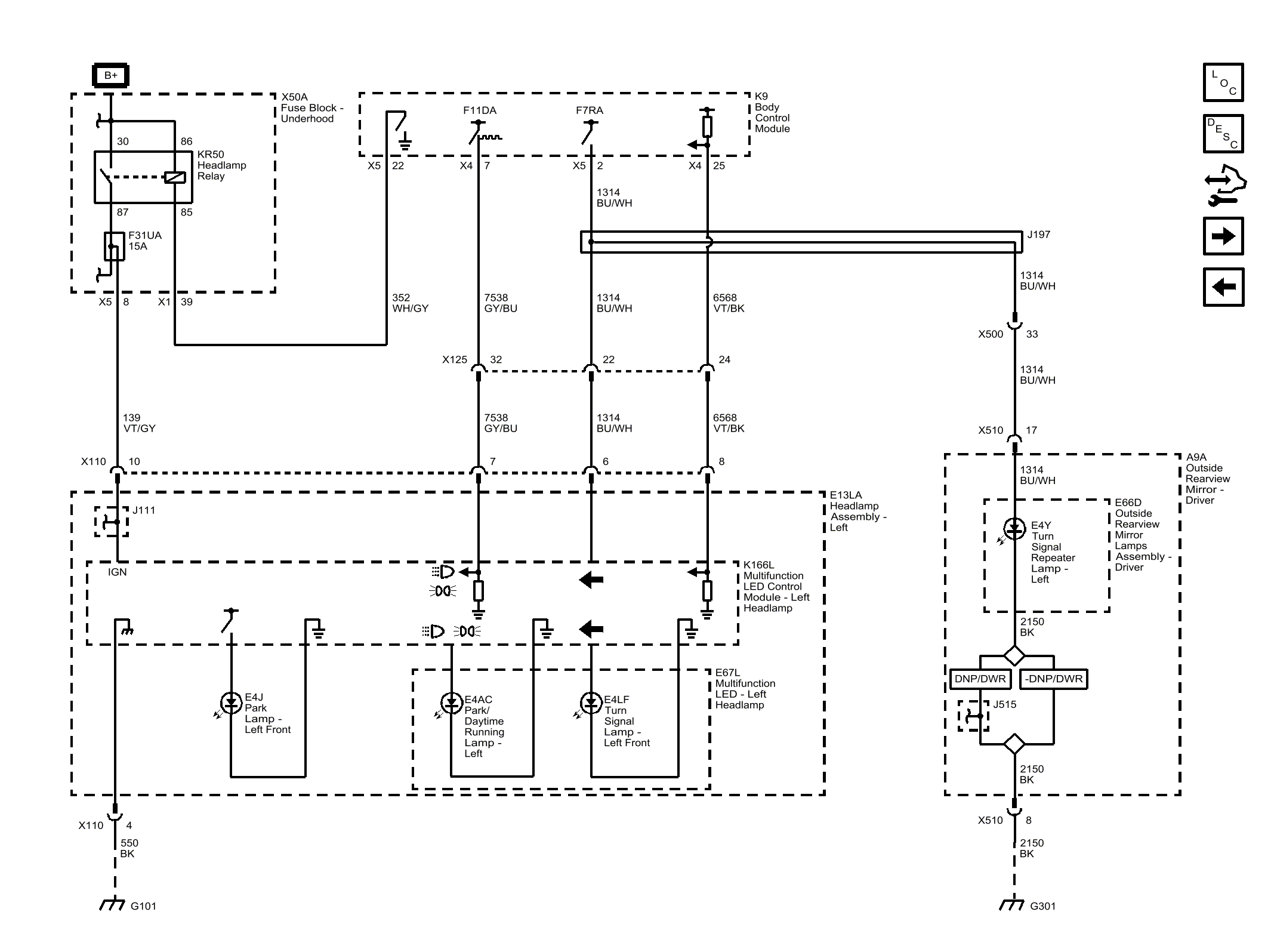

Fig 1: Front Lamps and Repeater Turn Signals - Left

GM4489508

Courtesy of GENERAL MOTORS COMPANY
