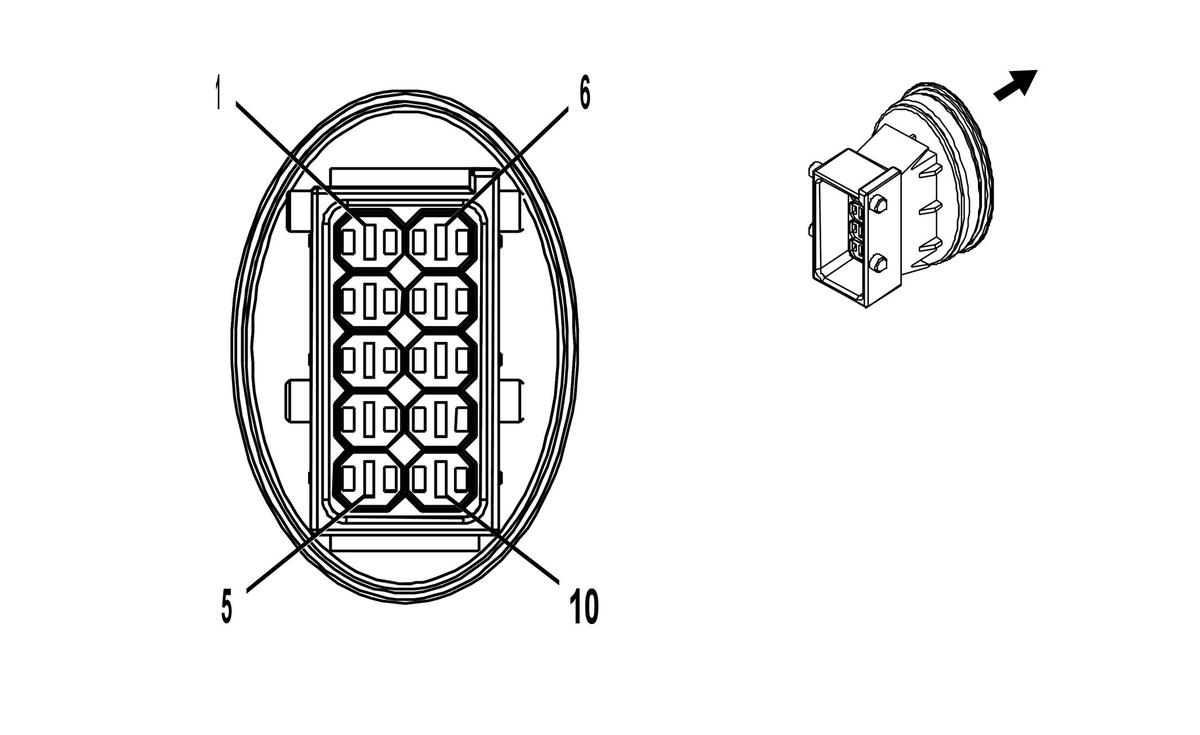

X120 Forward Lamp Harness to Right Headlamp Harness
|
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 1-967189-1
- Service Connector: 88988927
- Description: 10-Way F 2.8 Junior Power Timer Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Right Headlamp
- OEM Connector: -
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13579740 |
J-35616-35 (VT) |
J-38125-36 |
4-964286-1 |
Lear 16 |
E |
1 |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
- |
- |
Not Occupied |
1 |
- |
- |
- |
- |
- |
| 2 |
0.35 |
WH |
311 |
I |
- |
Right Headlamp High Beam Control |
2 |
0.35 |
WH |
311 |
II |
- |
| 3 - 5 |
- |
- |
- |
- |
- |
Not Occupied |
3 - 5 |
- |
- |
- |
- |
- |
| 6 |
0.35 |
VT/BK |
339 |
I |
- |
Run/Crank Ignition 1 Voltage |
6 |
0.35 |
VT/BK |
339 |
II |
- |
| 7 |
0.35 |
GN/WH |
7530 |
I |
- |
Local Interconnect Network Serial Data Bus 8 |
7 |
0.35 |
GN/WH |
7530 |
II |
- |
| 8 - 10 |
- |
- |
- |
- |
- |
Not Occupied |
8 - 10 |
- |
- |
- |
- |
- |
