Body Harness Routing - Right Side of the Luggage Compartment (-BQ9/V4U)

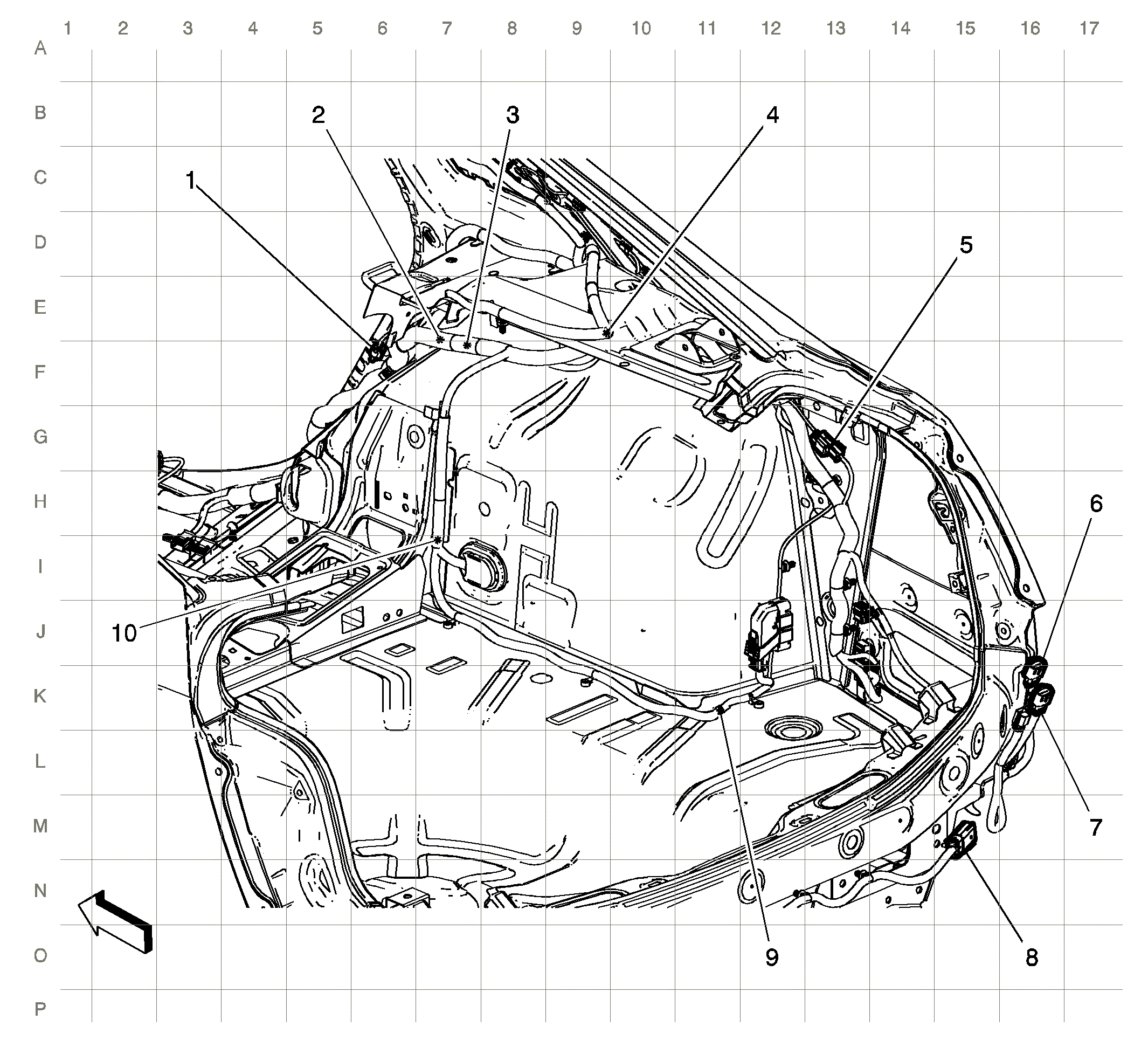

Fig 1: Body Harness Routing - Right Side of the Luggage Compartment (-BQ9/V4U)

Courtesy of GENERAL MOTORS COMPANY

Items
1: X322 X322 Body Harness to Right Rear Seat Air Bag Harness
2: J419
3: J429
4: J405
5: X450 X450 Body Harness to Body Harness
6: X410 X410 Body Harness to Left Rear Tail Lamp Harness (-CZ2)X410 Body Harness to Left Rear Tail Lamp Harness (CZ2)
7: X420 X420 Body Harness to Right Rear Tail Lamp Harness (-CZ2)X420 Body Harness to Right Rear Tail Lamp Harness (CZ2)
8: X415 X415 Rear Fascia Harness to Body Harness
9: J455
10: J434
