Body Harness Routing - Right Front of the Passenger Compartment (BQ9/V4U)

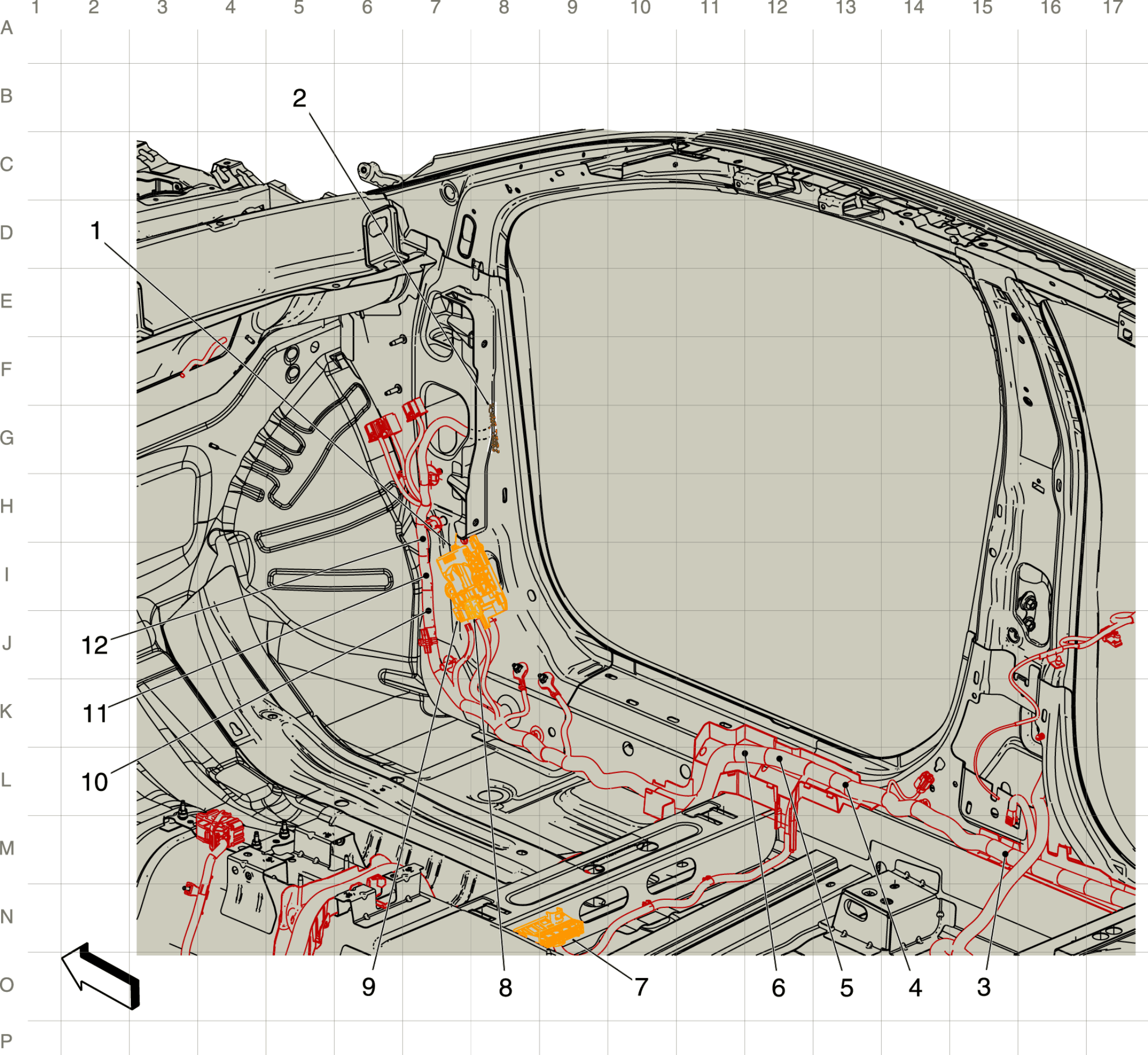

Fig 1: Body Harness Routing - Right Front of the Passenger Compartment (BQ9/V4U)

Courtesy of GENERAL MOTORS COMPANY

Items
1: X220 X220 Instrument Panel Harness to Body Harness (-CZ2)X220 Instrument Panel Harness to Body Harness (CZ2)
2: X600 X600 Passenger Door Harness to Body Harness
3: J328
4: J324
5: J331
6: J321
7: X320 X320 Body Harness to Passenger Seat Cushion Harness
8: X222 (UYR) X222 Body Harness to Instrument Panel Harness (IO5)
9: X215 (U2M) X215 Body Harness to Instrument Panel Harness
10: J320
11: J231
12: J221
