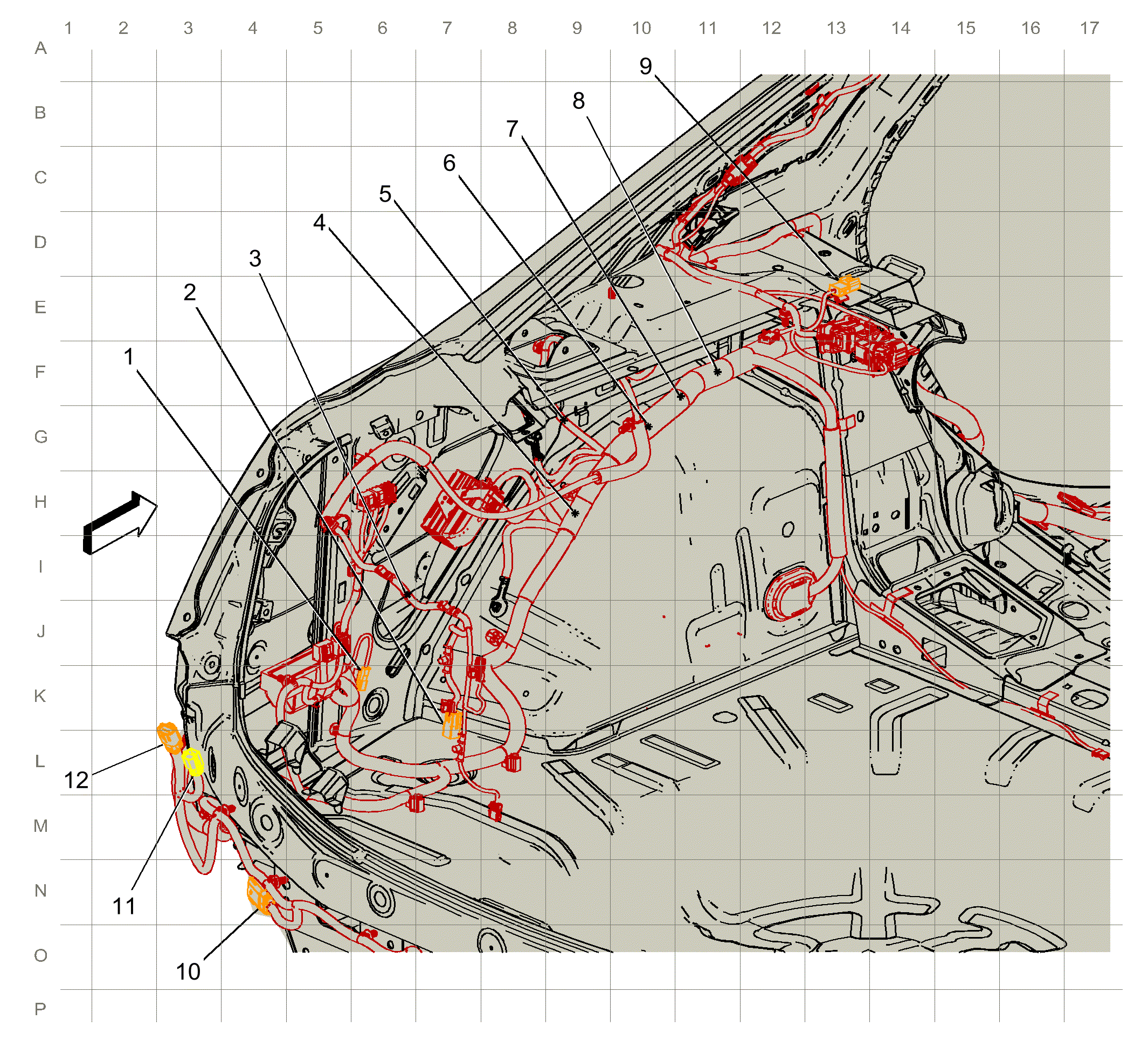

Body Harness Routing - Left Side of the Luggage Compartment (-BQ9/V4U)
| Items |
|---|
| 1: X910 X910 Autonet Harness to Body Harness |
| 2: X900 X900 License Lamp Harness to Body Harness |
| 3: J470 |
| 4: J410 |
| 5: J475 |
| 6: J345 |
| 7: J326 |
| 8: J346 |
| 9: X398 (DB3) X398 Sunshade Harness to Body Harness |
| 10: X404 X404 Rear Fascia Harness to Body Harness |
| 11: X410 X410 Body Harness to Left Rear Tail Lamp Harness (-CZ2)X410 Body Harness to Left Rear Tail Lamp Harness (CZ2) |
| 12: X410 X410 Body Harness to Left Rear Tail Lamp Harness (-CZ2)X410 Body Harness to Left Rear Tail Lamp Harness (CZ2) |
