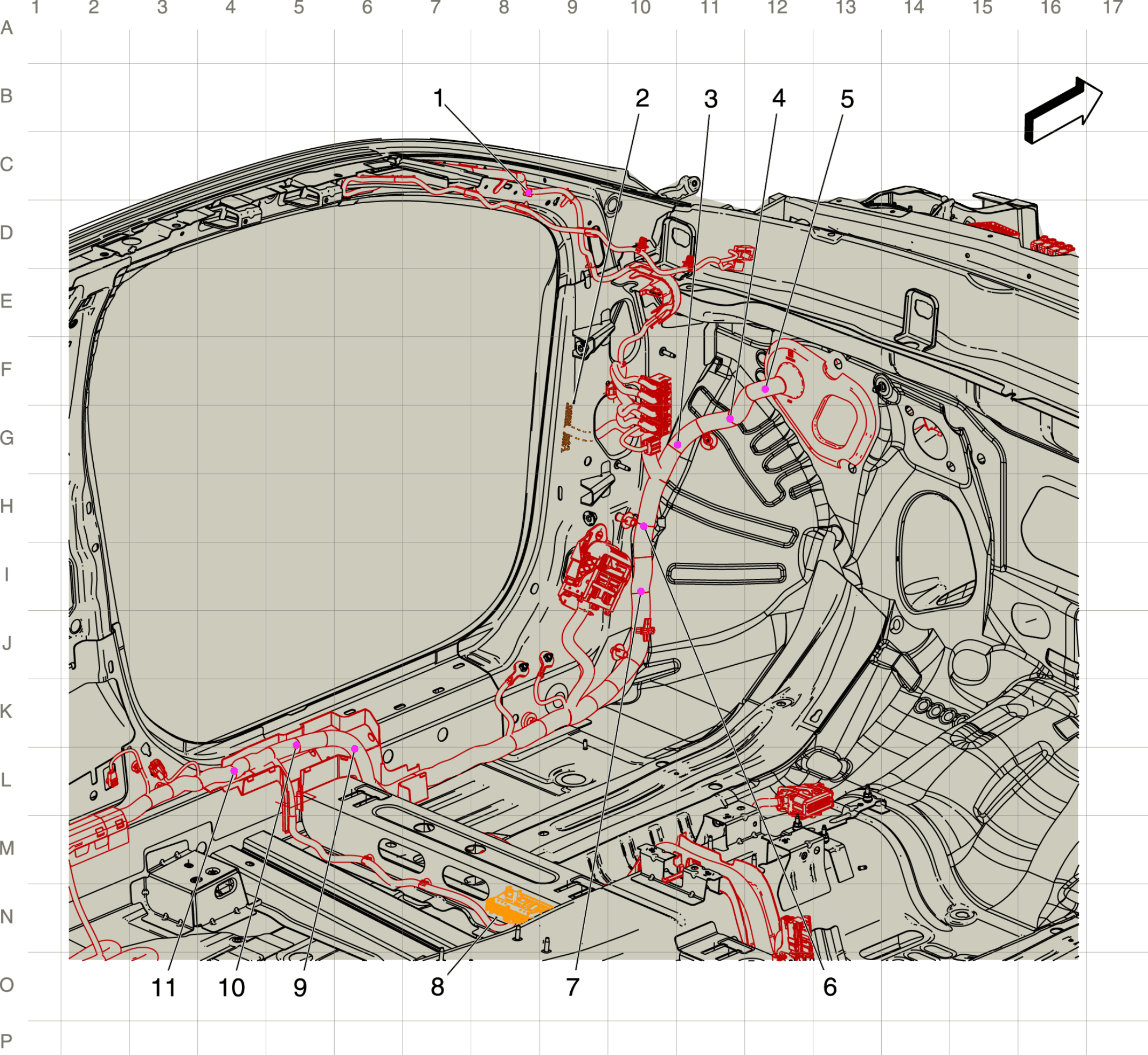

Body Harness Routing - Left Front of the Passenger Compartment (BQ9/V4U)
| Items |
|---|
| 1: J339 |
| 2: X500 X500 Driver Door Harness to Body Harness |
| 3: J216 |
| 4: J213 |
| 5: J208 |
| 6: J219 |
| 7: J218 |
| 8: X310 X310 Body Harness to Driver Seat Cushion Harness |
| 9: J322 |
| 10: J336 |
| 11: J325 |
