Upfitter Provision Wiring Schematics: Autonet

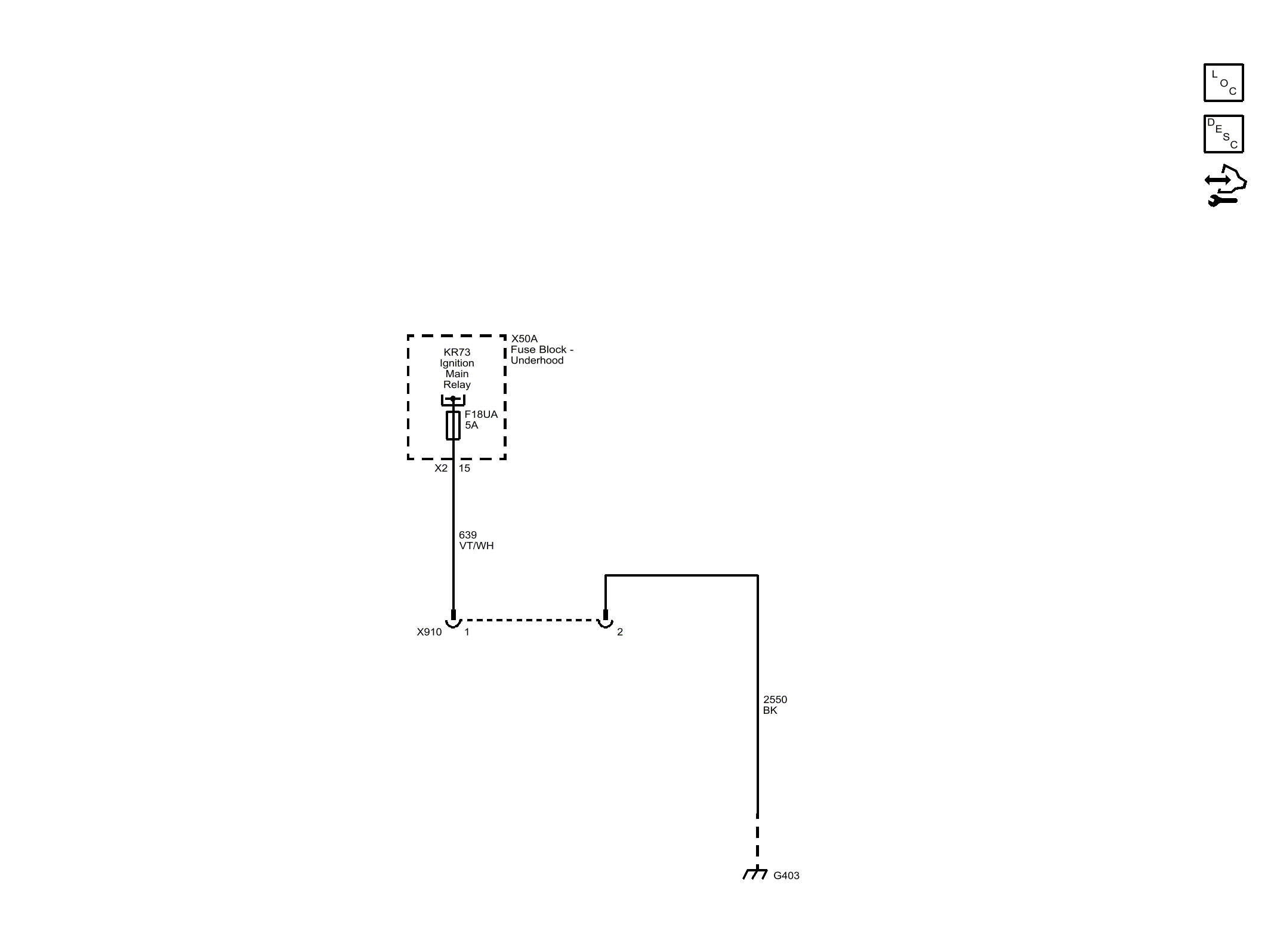

Fig 1: Autonet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
639	Run/Crank Ignition 1 Voltage
639 VT/WH	639 VT/WH
CAV 15	15
CONN X2	X2
2550	Ground
2550 BK	2550 BK
X910	X910
CAV 2	2
CAV 1	1
G403	G403
F18UA	F18UA 5A
X910	X910
KR73	KR73 Ignition Main Relay
X50A	X50A Fuse Block - Underhood
