F5DA Fuse

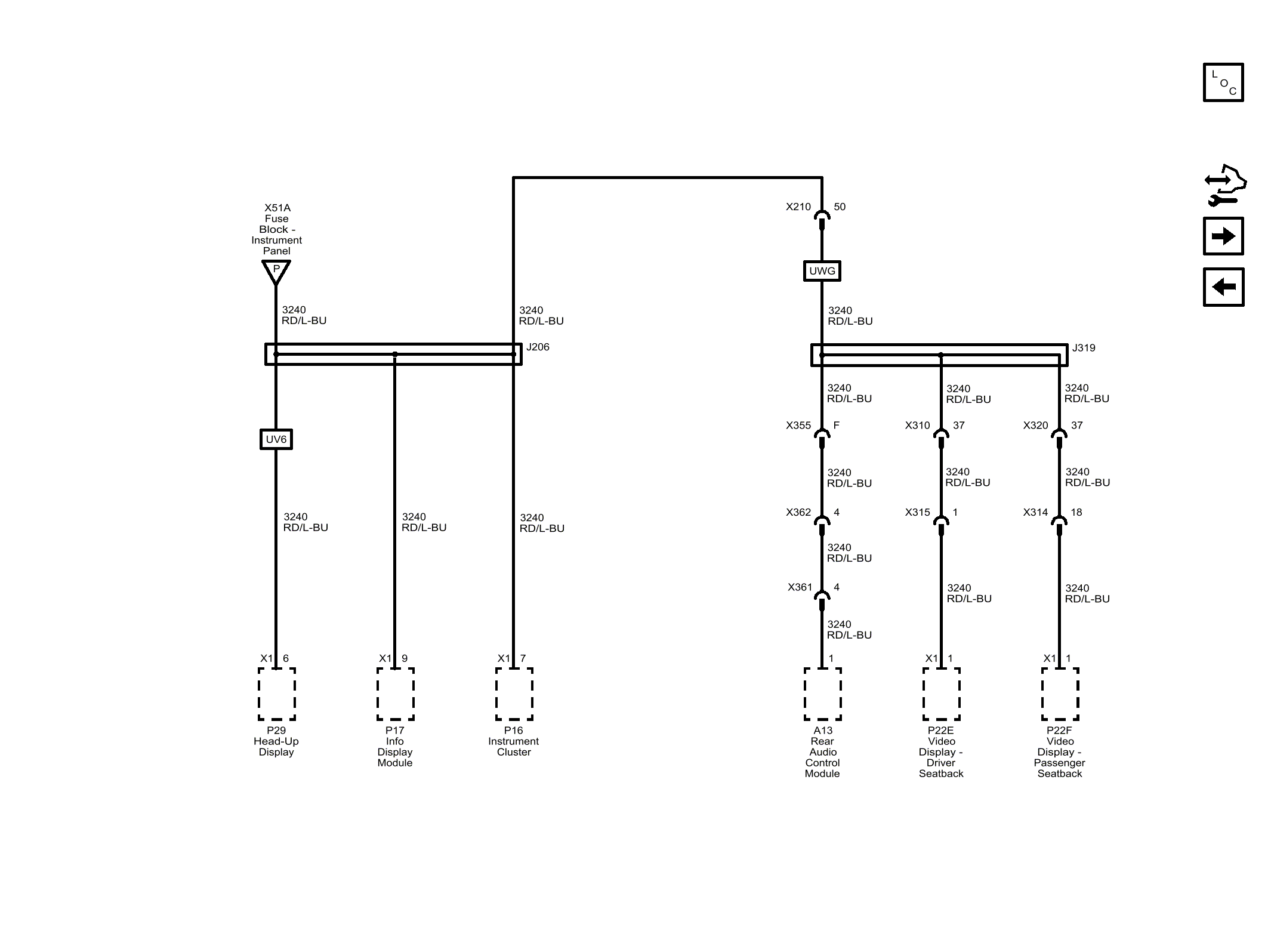

Fig 1: F5DA Fuse

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
3240	Battery Positive Voltage
3240 RD/L-BU	3240 RD/L-BU
CAV 1	1
3240 RD/L-BU	3240 RD/L-BU
CAV 6	6
CONN X1	X1
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
UWG	ENTERTAINMENT PKG-RR SEAT, DUAL DISO, REM CONT, AUX JACK, 2WIRELESS DUAL CHAN HEADPHO, OPT DR' 'DO NOT USE' 15SE14 VDS SME
CAV 1	1
CONN X1	X1
CAV 1	1
CONN X1	X1
3240 RD/L-BU	3240 RD/L-BU
CAV 50	50
CAV 7	7
CONN X1	X1
CAV 9	9
CONN X1	X1
UV6	DISPLAY-HEAD UP
CAV 4	4
CAV 1	1
CAV 18	18
CAV 4	4
CAV F	F
CAV 37	37
CAV 37	37
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
3240 RD/L-BU	3240 RD/L-BU
J206	J206
J319	J319
P REF	P
X210	X210
X362	X362
X315	X315
X314	X314
X361	X361
X355	X355
X310	X310
X320	X320
P17	P17 Info Display Module
A13	A13 Rear Audio Control Module (W68)
X51A	X51A Fuse Block - Instrument Panel
P16	P16 Instrument Cluster
P22E	P22E Video Display - Driver Seat Back (UWG)
P22F	P22F Video Display - Passenger Seat Back (UWG)
P29	P29 Head-Up Display (UV6)
