F11UA and F46UA Fuses

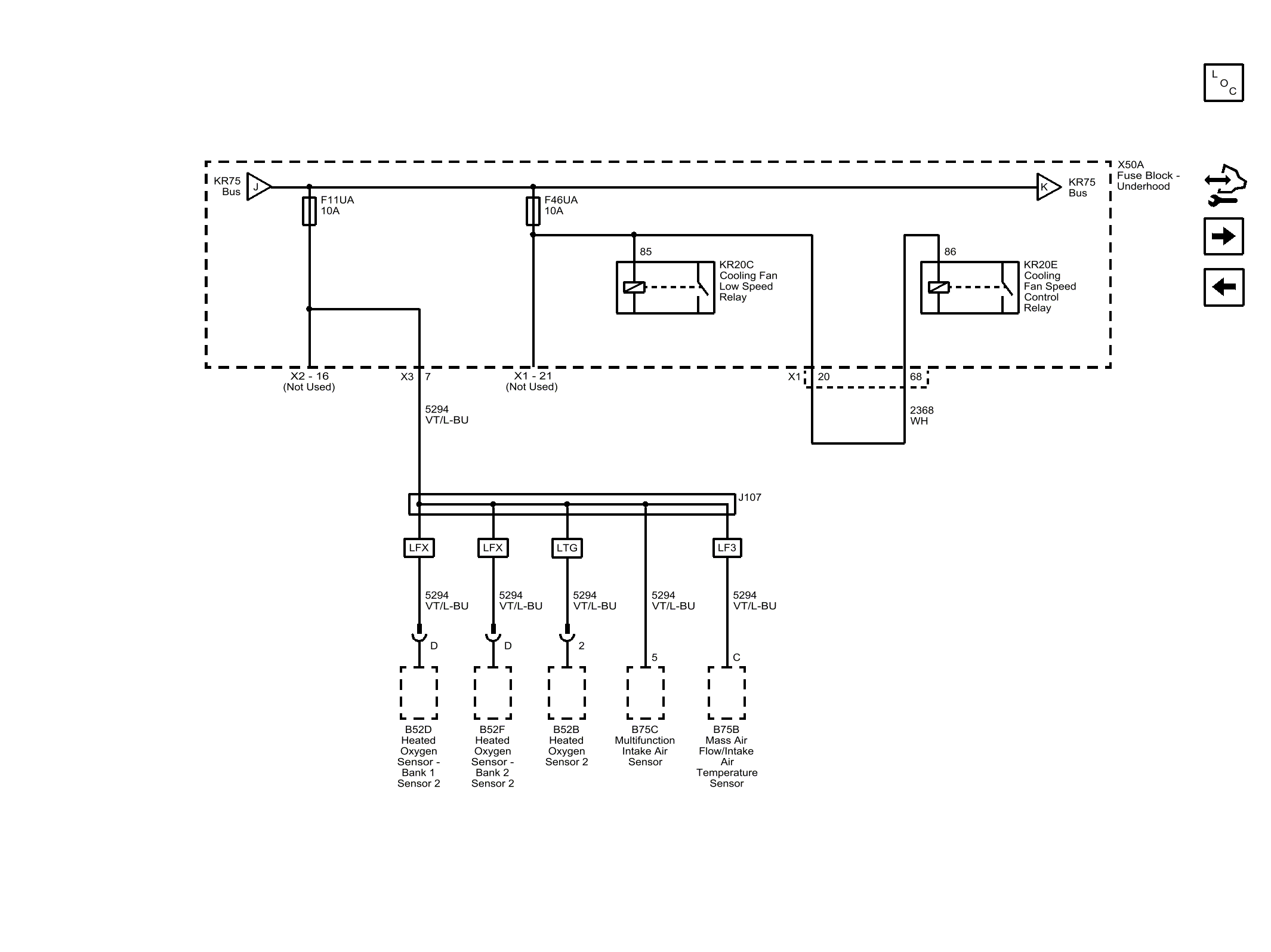

Fig 1: F11UA and F46UA Fuses

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAV 85	85
5294	Powertrain Main Relay Fused Supply (5)
5294 VT/L-BU	5294 VT/L-BU
CAV 7	7
CONN X3	X3
5294 VT/L-BU	5294 VT/L-BU
5294 VT/L-BU	5294 VT/L-BU
5294 VT/L-BU	5294 VT/L-BU
CAV 5	5
5294 VT/L-BU	5294 VT/L-BU
LFX	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
LFX	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
LTG	ENGINE-GAS, 4 CYL, 2.0L, SIDI, L4, ALUM DOHC, VVT, DCVCP, TURBO, E0-E100, ALUM
CAV D	D
CAV D	D
CAV 2	2
2368	Cooling Fan Control Signal
2368 WH	2368 WH
CAV 68	68
CAV 20	20
CONN X1	X1
CAV 86	86
5294 VT/L-BU	5294 VT/L-BU
CAV C	C
LF3	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, ALUM, TWIN TURBO, GM
F11UA	F11UA 10A
F46UA	F46UA 10A
J107	J107
X50A	X50A Fuse Block - Underhood
KR20C	KR20C Cooling Fan Low Speed Relay
KR20E	KR20E Cooling Fan Speed Control Relay
B52B	B52B Heated Oxygen Sensor 2 (LTG)
B75C	B75C Multifunction Intake Air Sensor (LFX/LFX/LF3)
B52D	B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX/LF3)
B52F	B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX/LF3)
B75B	B75B Mass Air Flow/Intake Air Temperature Sensor (LF3)
