Ground Distribution Wiring Schematics: G123

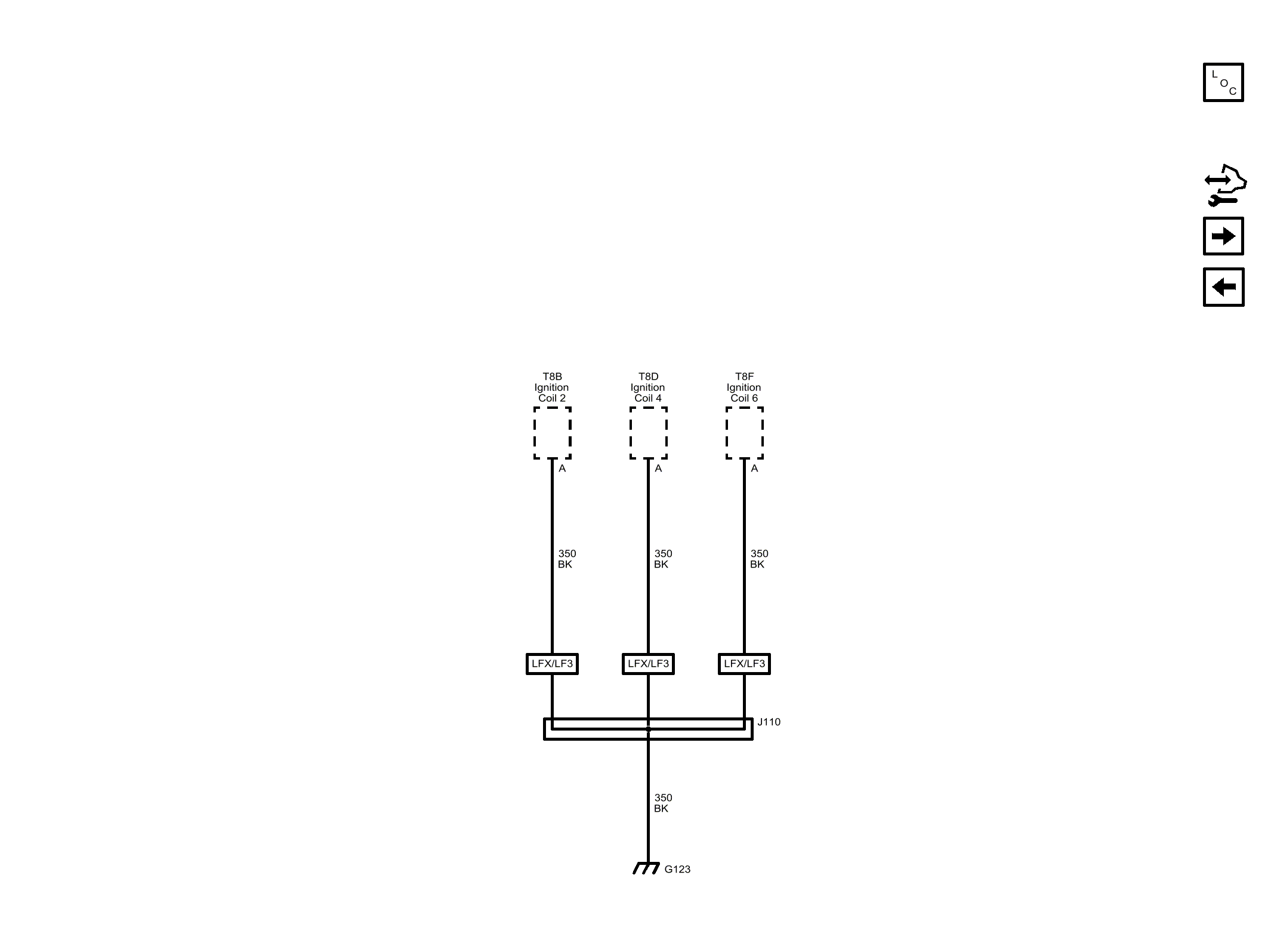

Fig 1: G123

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
350	Ground
CAV A	A
350 BK	350 BK
CAV A	A
350 BK	350 BK
CAV A	A
350 BK	350 BK
350 BK	350 BK
LFX	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
LF3	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, ALUM, TWIN TURBO, GM
LFX	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
LF3	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, ALUM, TWIN TURBO, GM
LFX	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
LF3	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, ALUM, TWIN TURBO, GM
G123	G123
J110	J110
T8B	T8B Ignition Coil 2
T8D	T8D Ignition Coil 4
T8F	T8F Ignition Coil 6
