Ground Distribution Wiring Schematics: G122

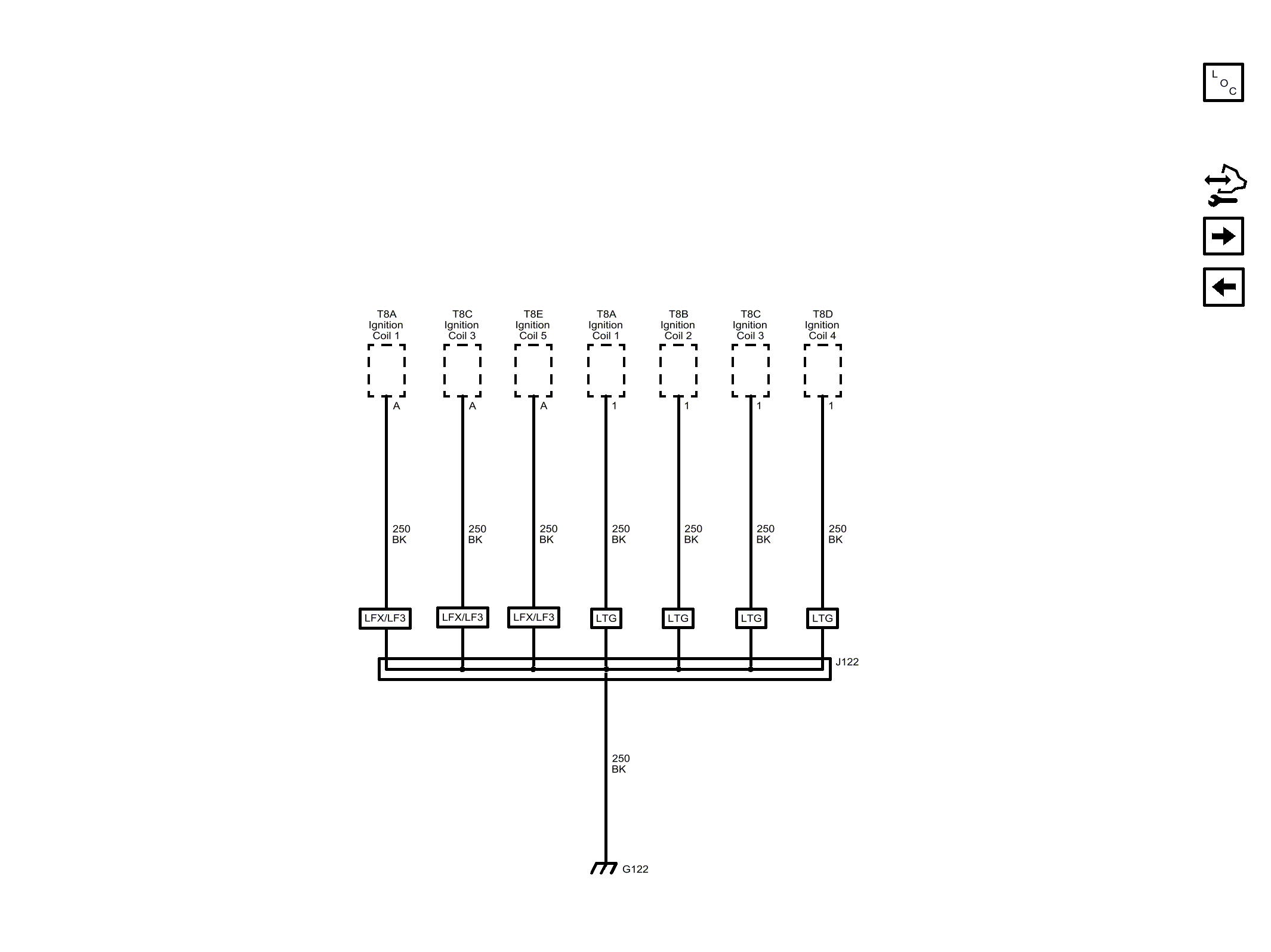

Fig 1: G122

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
250	Ground
250 BK	250 BK
CAV A	A
250 BK	250 BK
CAV A	A
250 BK	250 BK
CAV A	A
250 BK	250 BK
CAV 1	1
250 BK	250 BK
CAV 1	1
250 BK	250 BK
CAV 1	1
250 BK	250 BK
CAV 1	1
250 BK	250 BK
LTG	ENGINE-GAS, 4 CYL, 2.0L, SIDI, L4, ALUM DOHC, VVT, DCVCP, TURBO, E0-E100, ALUM
LTG	ENGINE-GAS, 4 CYL, 2.0L, SIDI, L4, ALUM DOHC, VVT, DCVCP, TURBO, E0-E100, ALUM
LTG	ENGINE-GAS, 4 CYL, 2.0L, SIDI, L4, ALUM DOHC, VVT, DCVCP, TURBO, E0-E100, ALUM
LTG	ENGINE-GAS, 4 CYL, 2.0L, SIDI, L4, ALUM DOHC, VVT, DCVCP, TURBO, E0-E100, ALUM
LFX	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
LF3	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, ALUM, TWIN TURBO, GM
LFX	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
LF3	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, ALUM, TWIN TURBO, GM
LFX	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
LF3	ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, ALUM, TWIN TURBO, GM
G122	G122
J122	J122
T8A	T8A Ignition Coil 1
T8B	T8B Ignition Coil 2
T8C	T8C Ignition Coil 3
T8D	T8D Ignition Coil 4
T8A	T8A Ignition Coil 1
T8C	T8C Ignition Coil 3
T8E	T8E Ignition Coil 5
