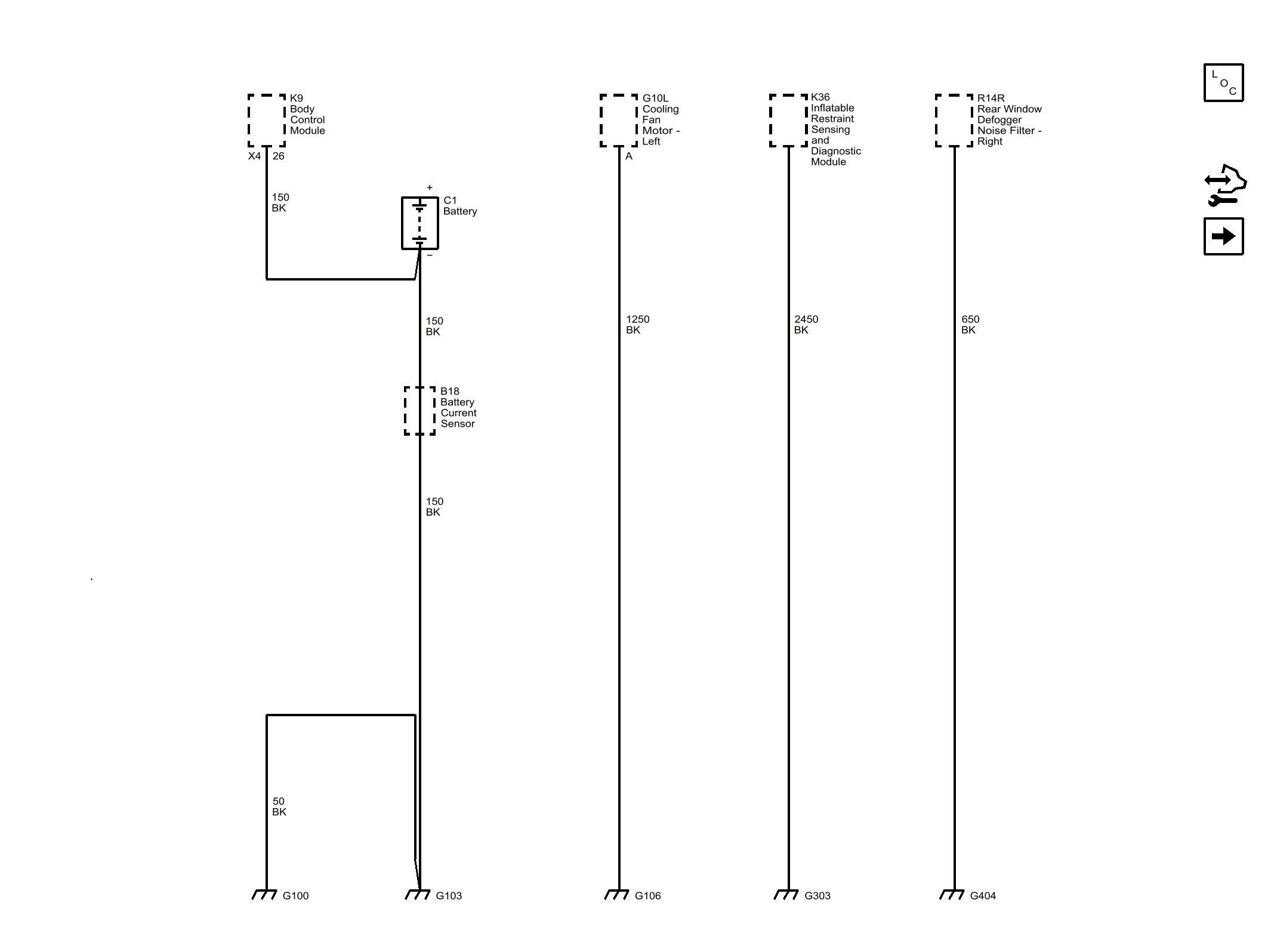

G100, G103, G106, G303 and G404
| Callout | Component Name |
|---|---|
| 150 | Ground |
| 150 BK | 150 BK |
| CAV 26 | 26 |
| CONN X4 | X4 |
| 150 BK | 150 BK |
| 50 | Ground |
| 50 BK | 50 BK |
| 1250 | Ground |
| 1250 BK | 1250 BK |
| CAV A | A |
| 2450 | Ground |
| 2450 BK | 2450 BK |
| CAV 19 | 19 |
| CONN X1 | X1 |
| 650 | Ground |
| 650 BK | 650 BK |
| 150 BK | 150 BK |
| G100 | G100 |
| G103 | G103 |
| G106 | G106 |
| G303 | G303 |
| G404 | G404 |
| K9 | K9 Body Control Module |
| C1 | C1 Battery |
| K36 | K36 Inflatable Restraint Sensing and Diagnostic Module |
| R14R | R14R Rear Window Defogger Noise Filter - Right |
| G10L | G10L Cooling Fan Motor - Left |
| B18 | B18 Battery Current Sensor |
