Steering Wheel Pad Accessory Wiring Harness Replacement

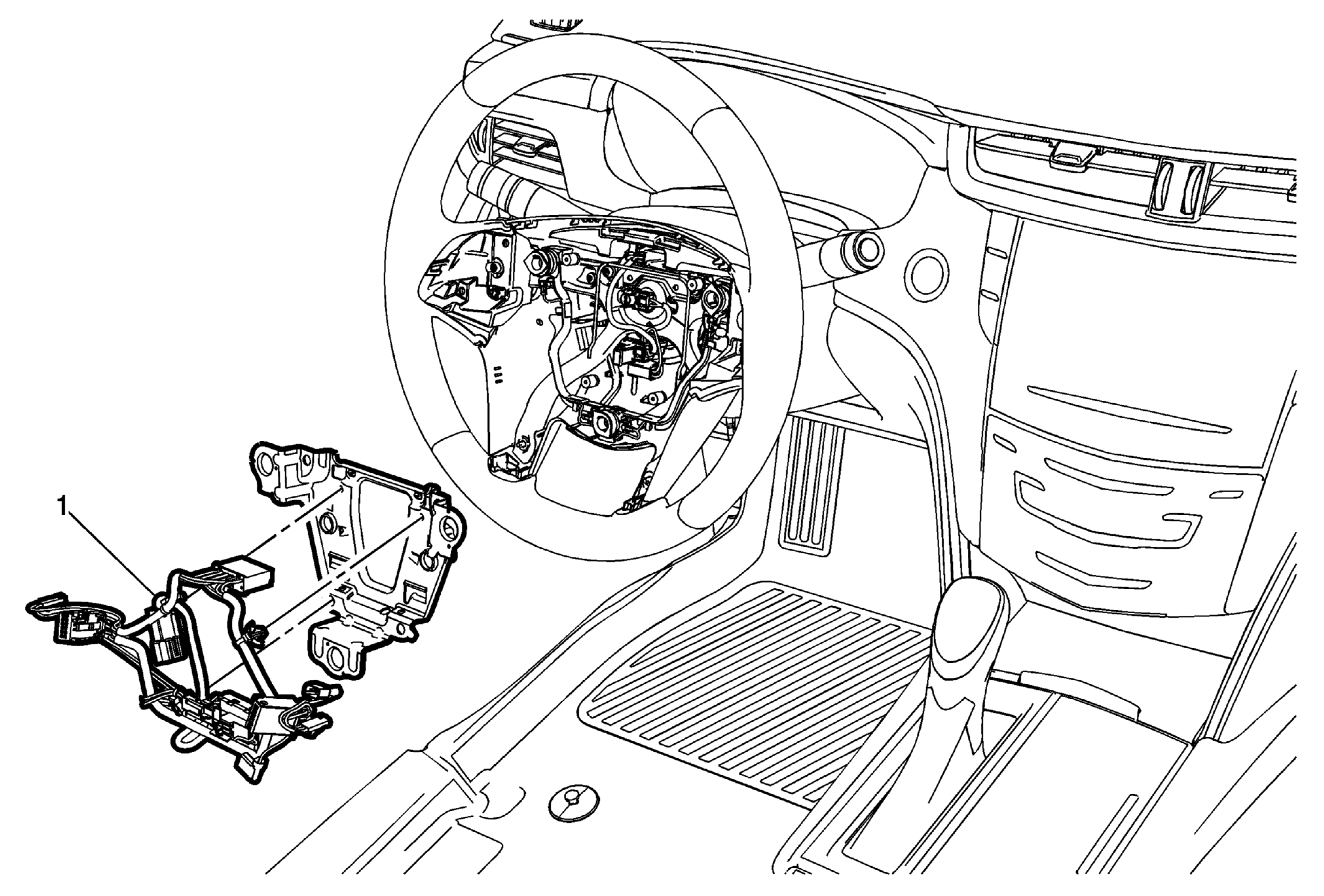

Fig 1: Steering Wheel Pad Accessory Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the steering wheel horn contact. Refer to Steering Wheel Horn Contact Replacement .
1	Steering Wheel Pad Accessory Wiring Harness Procedure  Release three clips on harness to remove from contact.
